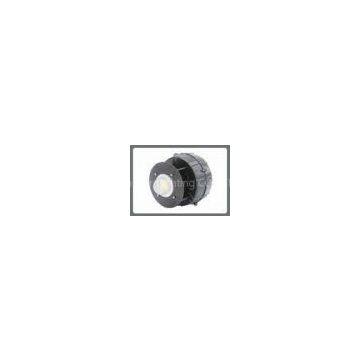

Waterproof 30w High Bay Led Lights For Factory, Workshop, Warehouse With Ce Rohs

Waterproof 30w High Bay Led Lights For Factory, Workshop, Warehouse With Ce Rohs



Application of led high bay:



Factory, Workshop, Warehouse, Indoor stadium, Exhibition hall, Museum, Supermarket,

Gas station and so on



Pictures:


Photometric Data:


Description:



Bridgelux and Epistar Chip for customer’s choice, 3 years warranty provided 30-300W led high bay light available Private model belong to our company exclusive with unique and beautiful design ISO9001:2008 Quality Management System factory locate in Shenzhen, China The led high bay light source adopts the integration of imported single high power LED, with the special design of integrating many chips into one lighting source. The crust in aluminum alloy die casting ensures the efficiency of heat emission, guaranteeing the light a long life span. The high pure imported aluminum from Germany as the reflector has high reflecting efficiency, and it can make sure the luminous flux, controlling the light inside of a useful area. It improves the efficiency of light uniformityuniformity and utilizationutilization, showing the LED advantage of energy saving.uu The integration of 5mm high strength roughened glass and the housing makes the led high bay light work perfectly in the high humidity environments. New high efficiency constant current driver. Wide range of input voltage: AC100-240V. No delay start. No waiting. It can reach its normal light as soon as it is turned on. No noise. No electrical wave, conforming to CE. Environment friendly and no air pollution. We exert the design of using cold light source. It’s no heat radiation. There is no ill to our eyes and skin. The led high bay light do not have lead, 　　hydrargyrum and any other contamination.

Specifications:



MAIN SPECIFICATIONS (T=25℃)
NUMBER	ITEM	DESCRIPTION
01	Input Voltage	AC100-240V 47-63Hz
02	LED	1 PC
03	Power	30W
04	LED Efficiency	80-90Lm/W
05	Initial Flux	>2700Lm (Cool White)   >2610Lm (Natural White)   >2490Lm (warm white)
06	Power factor	>0.95
07	Color	Warm White /Natural White / Cool White/Red/Green/Blue/Yellow
08	Color Temperature	2700-3300K (Warm White)  4000-5000K (Natural White)  5300-7000K (Cool White)
09	Center Illuminance	1.5M:1091 Lux 3.0M:273 Lux 6.0M:65 Lux
10	Beam Angle	80°
11	Life Time	>50,000 Hour
12	Operating Temperature	-25℃ to +55℃
13	Storage Temperature	-40℃ to +65℃
14	Connect Wire	Brown  L
