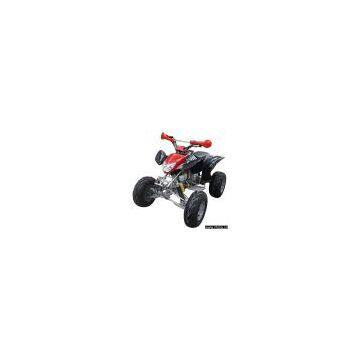

Sell 200cc Water-Cooled ATV with Big Tyres

Model No.:MA200R-N
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Specifications: 1) Engine type: single cylinder, water-cooled, 4-stroke 2) Power: 10.3kW/7,500rpm 3) Max. torque: 15N.m/6,000rpm 4) Min. ground clearance: 120mm 5) Wheel base: 1,150mm 6) Fuel tank capacity: 4L 7) Transmission mode: chain 8) Start mode: electric 9) Tires: a) Front wheels: 21 x 7-10 b) Rear wheels: 20 x 10-10 10) Max. speed: 75km/h 11) Break type (F/R): drum / disc 12) Power source: 12V, 9Ah 13) Height of seats: 880mm 14) Dry weight: 155kg 15) Load capacity: 105kg 16) Climbing degree: 20 17) Front hanging: integral ballonet absorber 18) Rear hanging: inner ballonet absorber 19) Cylinder size: 63.5 x 62.2mm 20) Displacement: 197ml 21) Transmission: 4 gears with one reverse gear, manual clutch 22) Min. turning radius: 2,650mm 23) Parking trig: mechanical lock 24) Ignition mode: CDI 25) Engine oil: 1.1L 26) Max. number of riders: 1 27) Lubrication: press splash 28) Compression proportion: 9.2: 1 29) Gas cylinder number: 1 30) Product dimensions (L x W x H): 1,800 x 1,120 x 1,130mm Outer packing: Carton dimensions: 1,470 x 860 x 880mm Conveyance: Qty/20' FCL: 20 units Qty/40' FCL: 44 units Qty/40' HQ: 66 units
