Angular Contact Ball Bearings
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | WQK 3213-2Z |
Product Description

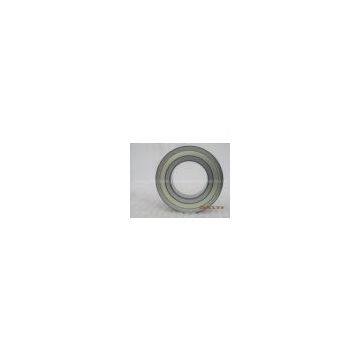

WQK 3213-2Z Angular Contact Ball Bearings
A:introduction
1.item: WQK 3213-2Z
2.Bore size (d):65mm
3. Outer size (D):120mm
4.Quality level :the same as International quality grade
5.Number of row: double row
6. Introduction: Imported equipment and European technology
7.1)since these bearings have acontact angle, they can significant axial loads in one direction togerther whith radial loads because of their design ,when a radial load is applied,an axial force component is produced ;therefore, two opposed bearings or a combination of more than two mudt be used.
2)since the rigidity of single-row angular contact ball bearing can be increased by preloading ,they are often used in the main spindles of machine tools ,for which high running accuracy is required.
B. Model number :
| BearingNo. | Bore(mm) | O.D.(mm) | Width(mm) | Weight (lbs) |
| 3208 | 40 | 80 | 30.16 | 1.38 |
| 3209 | 45 | 85 | 30.16 | 1.49 |
| 3210 | 50 | 90 | 30.16 | 1.54 |
| 3211 | 55 | 100 | 33.34 | 2.36 |
| 3212 | 60 | 110 | 36.51 | 2.95 |
| 3213 | 65 | 120 | 38.10 | 3.70 |
| 3214 | 70 | 125 | 39.69 | 4.06 |
| 3215 | 75 | 130 | 41.28 | 4.43 |
| 3216 | 80 | 140 | 44.45 | 5.97 |
| 3217 | 85 | 150 | 49.21 | 7.67 |
| 3218 | 90 | 160 | 52.39 | 9.35 |
| 3219 | 95 | 170 | 55.56 | 11.2 |
| 3220 | 100 | 180 | 60.33 | 13.0 |
If you have any question . please do not hesitate to tell me.
