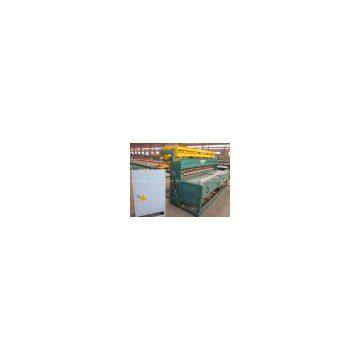

Help CenterWire Mesh Fence Welding Machine
Related Products
Function features: motor drive
1.This machine adopts synchronous control technique. The center-control and welding time are composed of PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could pres at one time, times welding.
2.Welding by electromotor; the hopper adopts the step motor; brake motor wheels; pulling the wire net is controlled by the step motor.
3.The line wire and the weft wire are pre-straight and pre-cut. The greatest advantage is that you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.
|
Wire diameter |
3.0-6.0mm |
Line wire form |
Pre-cut wire |
|
Weft wire distance |
25-200mm |
Weft wire form |
Pre-cut wire |
|
Line wire distance |
50-300mm |
Rated voltage |
380V 50HZ |
|
Welding net width |
2500mm |
Rated power |
6X125KVA |
|
Welding speed |
40 times/min |
Overall dimension |
3100×7900×1900mm |
|
Welding No. |
48 |
Length wire net |
6000mm |
