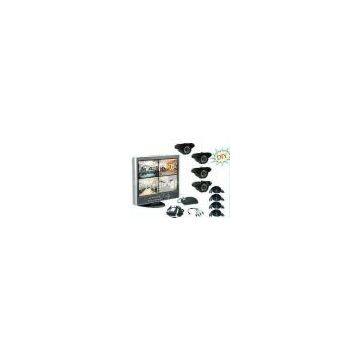

DIY CCTV Security Camera System,SAV-DH9804+SAV-CW268,IR Waterproof camera

Specifications

LCD DVR, SAV-DH9804
1) 4CH, H,264 LCD DVR
2) Support CMS ,DDNS
3) Support blackberry mobile view
4) Suport email alarm



Features

1) H.264 Baseline  9 selectable video quality levels

2) Hexaplex operation - simultaneous record, live, playback, backup, control & remote access

3) Mixed operation windows - Playback Search for selected channel in the live monitoring mode

4) Recording quality can be configured into two groups-better usage of hard disk

5) 5 network clients supported

6) Network audio conferencing capability

7) Playback search by time or event (alarm, motion, & video loss)

8) Multilingual support

9) Multi-level password to ensure high degree of security

10) Recording playback:100/120 fps CIF

                                     50/60 fps  Half-D1

                                     25/30 fps  D1

Features

Specifications

IR waterproof camera
>>Image Size: 3.6X2.7mm
>>IR LED unit: 24pcs IR LED
>>IR Wavelength: 850nm
>>IR LED Distance: 20m



Model NO.: SAV-CW268

>>Shell: Waterproof and Aluminium Metal Housing

>>Image Device: 1/3Sony Color Supper HAD CCD(1/4 Sharp,1/3Sharp,1/4 Sony can be optional)

>>Horizontal Resolution: 420TV Line

>>Effective Picture Elements:

                                          PAL:500(H)X582(V)

                                          NTSC:510(H)X492(V)

>>Image Size: 3.6X2.7mm

>>IR LED unit: 24pcs IR LED

>>IR Wavelength: 850nm

>>IR LED Distance: 20m

>>Min Illumination: 1.0Lux/F1.2;0Lux(IR ON)

>>Lens: 6mm(3.6mm,6mm,8mm,12mm,16mm lens can be optional)

>>Video S/N Ratio: More than 48db(AGC Closed)

>>Electronic Shutter Control:1/50(1/60)-1/100000 Sec

>>Video Output Level: 1.0Vp-p75Ohms,composite

>>Power Supply: DC12V/360mA

>>Operation Temperature: -10⁰C~ +50⁰C

>>Dimension: 113*68*62mm

>> Bracket size: f60mm*116mm

>>Net Weight: 0.625kg

>>Package: 20pcs/carton, carton size: 500X400X250mm
