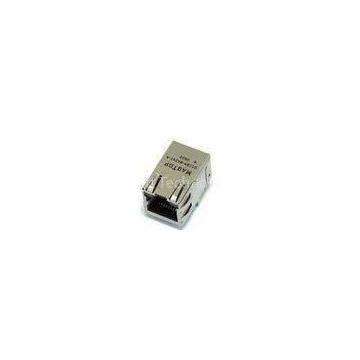

Tab Down 10 / 100 / 1000 BASE RJ45 Connector with lan transformer KRJ-320CNL
10/100/1000BASE 1x1 Tab Down RJ45S with lan transformer without LED with EMI KRJ-320CNL
|
1．1 RJ-45 connector integrated with X\'FMR/ Impedance Resistor/High |
|
Voltage Capacitor. |
|
1．2 Size same as RJ-45 connector to save PCB board space. |
|
1．3 Design for 10/100 base transmission over UTP-5 CABLE. |
|
1．4 Operating temperature range is 0℃~70℃. |
|
1．5Housing Material:PBT Black |
|
1．6Contacts:0.35mm thick phos bronze plated with 6u\'gold in contact area |
Specifications:
.Insertion Loss :1-100MHZ -1.0dBmax
.Rturn Loss : 1-30MHZ -16.0dBmin
30-60MHZ -14.0dBmin
60-80MHZ -10.0dBmin
.Cross Talk :1-30MHZ -40.0dBmin
30-60MHZ -35.0dBmin
60-80MHZ -30.0dBmin
.CMR:1-100MHZ -35.0dBmin
.Hi-Pot:1500V AC 6S 1mA
.Turn Ratio :1CT:1CT±3％
.OCL:350uH＠100KHZ 100Mv 8mA DC
.Contacts:0.35mm thick phos bronze plated with 6u’gold in contact are
.Housing Material:PBT Black
.Operating temperature rang :0℃ to +70℃
Applications:
Integrated RJ45 connector main used to :
• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,
internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
