Help CenterSmall Type Cream Filling Machine
Related Products

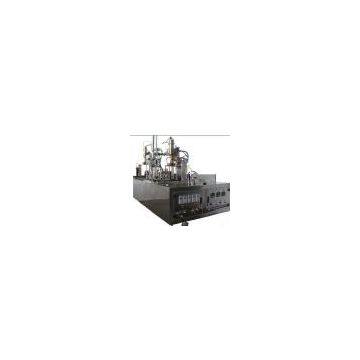

BW-500 type gable top carton filling machine is semi-automatic, including the following parts: Carton forming part, capping part, top performing part.
1. Work flow:
1) Carton Forming part: Put the cardboard onto the mandrel (manually) -- Bottom performing -- Bottom heating -- Bottom sealing
2) Capping part: Put the cap into and the carton's capping hole (manually) -- Ultrasonic welding -- Top Open Carton with Cap
3) Top performing part: Top preforming
4) Filling part: Put the carton to the filling part (manually) -- Rationing filling -- Filled Top Open Carton with Cap
5) Top sealing part: Top heating -- Top sealing
6) Date printing part: Date printing -- Finished Product
2. Suitable for filling:
Milk, yogurt, cream, beaten egg, soy milk, juice, tea drink, corn drink, pure water, sauce, wine, spices, cleaning solution, chemical product, sugar, grain, cornmeal, other dry powder, etc.
3. Technical parameter:
1. Capacity: 250--1000ml (can be filled by one machine)
2. Output: 400-500 cartons/hour
3. Packing material: Cardboard carton / aluminium foil carton
4. Filling temperature: Cold filling: 2-50 degC / hot filling 88-92 degC
5. Cap: With cap (Optional)
6. Overall power: 15KW (three phases of electricity)
7. Size: (L*W*H): 1.6m*1.2m*1.8m
8. Compressed air pressure: 0.8-1.0 Mpa, Flow rate: ≥ 0.4M3/min, without oil, water and dust
9. Cooling water: Flow volume: ≥ 20L/ min Temperature: Normal temperature
10. Net Weight: 500kg
11. Installation requirement: Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.
