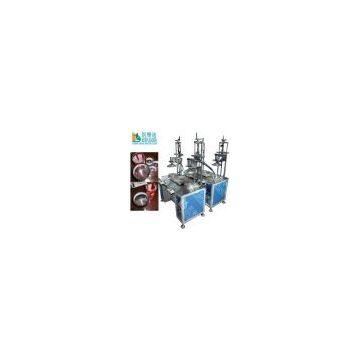

Double Heads Turntable Ultrasonic Welding

Characters

IC circuit precision control, automatic overload protection system
adopting digital switch, 1/100 precision re-set control
adjustable horizontal level, easy control welding horn
high O transducer, optimized output
Have resonant frequency when the load, unload, without adjustment for the frequency of welding horn
Square column and column airframe structure is optional, the straight line guide bearing, the precise matching device
Using the turbine rotation to adjust the machine movement, which is better than normal
Adopting Japan HuangPai brand alloy steel to keep frequency strong and stable
Celebrate itself durability for adopting USA aviation standard 7075¡¢6064 Aluminum alloy
the electronic components are imported from Italy, Japan, American, South Korean, Taiwan and etc
all in one high capacity machine, applied for high precision of welding work piece
Automatic protective device, which is optional
high-power machine, which is applied for Large work piece

Mainly parameter

Model

KLC-2615TD

KLC-3215TD

KLC-4215TD

Input  power

2600w

3200W

4200W

Frequency

20KHZ/15KHZ

Input voltage

220V

Max input power

1.2KW

1.9KW

2.3KW

Active horn

70mm

Oscillation system

Auto-stimulating

Output time

0.01-99S

Pressure

Pressure  bound  1-7bar

Welding area

200mm*8

220mm*8

250mm*8

Compressor

1HP

Net weight

200kg

250kg

300kg
