PMR3000 Single Phase RACK Mountable 6000 VA / 4800 W Apc Smartups 1500

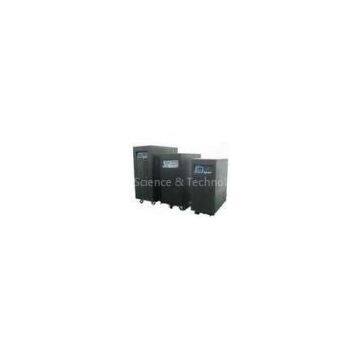

PMR3000 Single Phase RACK Mountable 6000 VA / 4800 W Apc Smartups 1500 thumbnail-1
PMR3000 Single Phase RACK Mountable 6000 VA / 4800 W Apc Smartups 1500 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Mengda
Place of Origin:
China
Model Number:
PCR06,PCR10
Contact Supplier Request Quote Chat Now
Shenzhen Mengda Science & Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mengda
Place of Origin China
Model Number PCR06,PCR10
Delivery Time:3-10 days
Certification:CE, QS, CCC

PMR3000 Single phase RACK mountable 6000 VA / 4800 W  apc smartups 1500

Power Castle Rack mount is a powerful product range with high adaptability and flexibility. Its cut-edge digital control technology of DSP (Digital Signal Processor), can greatly improve the product performance and system reliability, and deliver a compact integration with higher power density.

Perfect Application:

Network, data centre, servers and workstations, control system, communication system and office etc.

Main Features are below:

19\' Rack-mount, 4U(height)

High frequency and dual conversion on-line technology

192VDC and 240vdc easily  convertible

Wide input frequency 40-70hz

Perfect failure protection and alarm function:

Rich Communication and Monitoring Features

Advanced PFC technology

Self-diagnosis when UPS startup

AC  start and Cold start feature(DC power on )

Automatically charging batteries in UPS off mode

Lightning and surge protections(surge energy rating 1050 Joules)

4 levels Fan speed automatically changes as load varies

Event record function, 100logs

Large LCD display and easy maintenance design
Technical Specifications:

Power Castle RACKMOUNT 6K/10K  ONLINE HF UPS

MODEL PCR 06L PCR 06S PCR 10L PCR 10S
PHASE 1 phase in / 1 phase out
CAPACITY 6000 VA / 4800 W 10000 VA / 8000 VA
INPUT
Voltage Range Low Line Transfer  176 VAC ± 3% @ 100% load
130 VAC ± 3% @ 50% load
Low Line Comeback  188 VAC ± 3% @ 100% load
142 VAC ± 3% @ 50% load
High Line Transfer  286 VAC ± 3%
High Line Comeback  270 VAC ± 3%
Frequency Range 　 40-70Hz, following range 46~54 Hz ◎50Hz / 56~64 Hz ◎60Hz
Phase Single phase with ground
Power Factor ≧0.99  @ 100%load
OUTPUT
Output Voltage 208/220/230/240 VAC
AC Voltage Regulation  ± 1%
Frequency Range (Synchronized Range) 46~54 Hz ◎50 Hz / 56~64 Hz ◎60 Hz
Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio 3:1 (max.)
Harmonic Distortion ≦3 % THD (Linear Load)  ≦6 % THD (Non-linear Load)
Transfer Time AC Mode to Batt. Mode Zero
Inverter to Bypass Zero
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
AC Mode 89%
Battery Mode 88%
BATTERY
Standard model Battery Type lead-acid battery maintanence free
Numbers 16/20Pcs
Typical Recharge Time 3 hours recover to 90% capacity 4 hours recover to 90% capacity
Charging Current (max.) 1A ±10% 4A±10% 1A ±10% 4A ±10%
Charging Voltage  220/273 VDC ± 1%
Long-run Model Battery cabinet  inbuilt with 16/20pcs
