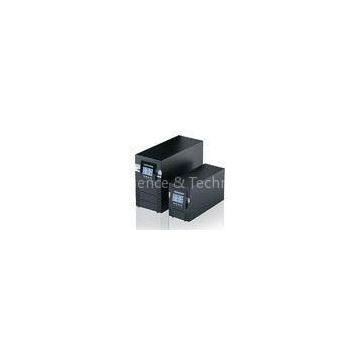

700W - 2100W 1 - 3KVA 220V High Frequency Online UPS, Uninterruptable Power Supply
Key Features
●Large blue black light LCD for detailed real-time UPS status display.
●Pure high frequency online UPS with voltage regulator circuit, which can provide a perfect power protection when UPS working in a poor surroundings.
●Large blue black light LCD for detailed real-time UPS status display.
●Comprehensive Electrical isolation and bypass protection.
●Input PF correction, reduce the harm of harmonic wave to the power grid, it’s convenient to connect mini type generator.
●Automatic alarm; Self-testing function.
●Wide Input voltage range.
Input N/L Inspection function and date line protection.
●DC start when power off, convenient and reliable; Restart automatically when Electricity is restored.
Trendy & Elegant LCD Design for real-time UPS system information:
Back Panel Of Power Supply UPS HP9116C 1-3KVA
Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…
Technical Specifications of Power Supply UPS HP9116C 1-3KVA
|
Model |
HP9116C 1-3KVA |
|||||
|
1KT |
1KT-XL |
2KT |
2KT-XL |
3KT |
3KT-XL |
|
|
Rated Power |
1KVA/700 W |
2KVA/1400 W |
3KVA/2100 W |
|||
|
Rated Voltage |
220/230/240VAC |
|||||
|
Rated Frequency |
50/60 Hz |
|||||
|
Input |
||||||
|
Voltage Range |
115～295VAC(±3VAC) |
|||||
|
Frequency Range |
50HZ:(46～54HZ);60HZ;(56HZ～64HZ) |
|||||
|
Power Factor |
>0.98 |
|||||
|
Output |
||||||
|
Voltage Regulation |
220/230/240X (1±2%)VAC |
|||||
|
Frequency Regulation |
50/60Hz ±0.05Hz |
|||||
|
Power factor |
0.7/0.8(Optional) Standard 0.7 |
|||||
|
Voltage distortion |
Linear load<3% Non-linear load<6% |
|||||
|
Overload |
110%～150% for 30s change to bypass model, Recover after load normal |
|||||
|
Current Crest Ratio |
3:1 max. |
|||||
|
Transfer time |
0ms(AC mode →Battery mode) |
|||||
|
Battery |
||||||
|
DC Voltage |
36VDC |
96VDC |
96VDC |
|||
|
Recharge Time |
7hrs to 90% of capacity after full load discharge |
|||||
|
Recharge Current |
1A |
4A/8A(Optional) |
1A |
4A/8A(Optional) |
1A |
4A/8A(Optional) |
|
Display |
||||||
|
LCD |
Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate. |
