Certification:CE,ISO,SGS,FDA
1.big punch force
2.high precision
3.very reliable&COMPETITIVE PRICE

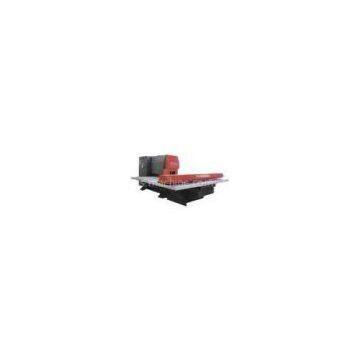

Cheap and Good Quality AMD-Y25 Series Hydraulic CNC Turret Punching Press
1. Equipped with digital hydraulic initiative transmission system of high precision, Speed, travel is adjustable, and the punch speed is up to 300 HPM.
2. Transmission system adopts international brand of ball screws and linear guide ways with high precision and large lead, which is of high precision and good performance
3. Adopts advanced CNC system inland and digital AC servo motor to make it fast and reliable. Convenient operation may realize to converse AutoCAD graphics automatically. Owning mould library management realize the plank automatic relocation and achieve a key type operation, breakpoint processing, part-time display, simulation show processing track, equipment empty run diagnostic and so on
4. Main pneumatic components, electric components, hydraulic components and transmission components adopt international well-known brand product, which makes the punch work perfectly.
5. The fully bushed high precision turret improves the accuracy and longevity of the turret to a large extent, the customer can make a selection between 6 and 24 stations.
6. Adopts full float type pneumatic clamp, which can float together with sheet, expand processing range, eliminate stamping spare strength and avoid plank distortion.
|
Specification |
Unit |
AMD-Y25 |
|
Punch Force |
KN |
300 |
|
Max. Processing Size |
mm |
2500*1250 |
|
Max. sheet Thickness |
mm |
6 |
|
Max. Punch Diameter |
mm |
Φ31.5 |
|
Max. Traversing Speed |
m/min |
40 |
|
Max. Punch Hit |
hpm |
300 |
|
Hole Accuracy |
mm |
±0.1 |
|
Number of stations in turret |
per |
8 |
|
Turret Speed |
rpm |
30 |
|
Controlled Axis |
No. |
3/4 |
|
Air Pressure |
mpa |
0.6 |
|
Outline Dimension |
mm |
5020*2680*2340 |
|
Machine Weight |
T |
8.5 |
