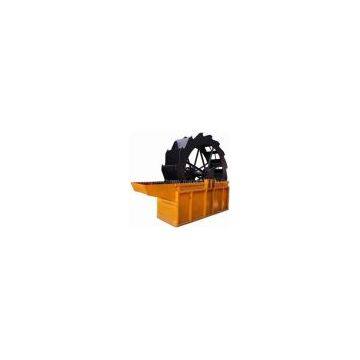

Sand washing machine are mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc., and with features of high degree cleaning-up, reasonable structure, large capacity, low power consumption, small loss of the sands during the washing process, especially for that the drive parts of the sand washing machine are separated from water and sands.
So that it has lower failure rate than the usual sand washing machine.
Operating principle:
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Characteristics:
Reasonable structure
Large capacity
Low consumption
Little loss of the sand during the washing process
Low failure rate
Technical parameters:
|
Type |
Diameter(mm) |
Capacity(t/h) |
Motor power(KW) |
Weight(kg) |
|
XS2600(I) |
2600 |
20-80 |
5.5 |
2400 |
|
XS2600(II) |
2600 |
30-90 |
7.5 |
2900 |
|
XS3200 |
3200 |
240-300 |
11 |
1140 |
|
XS3600 |
3600 |
280-400 |
15 |
16700 |
