Mobile DVR Recorder 4 Channel SD Vehicle DVR Bus Truck

Mobile DVR Recorder, More products /

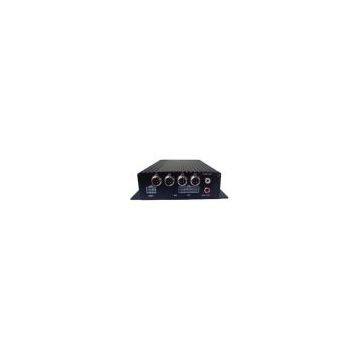

4 Channel Mobile DVR Recorder for Truck/School Bus

• Vibration Resistance: automotive industry standards
• Memory: Built-in 256MB flash, support 1X 4-32GB SD SDHC card (not included)
• Input Format: NTSC or PAL, optional
• Output Format: NTSC or PAL
• AV Input: 4 channel full real time video with audio
• Video Output: 1 channel video
• Audio Output: 1 channel audio
• 1X RS485, 1XRS232 port
• Alarm Input: 4 channel
• Alarm Output: 2 channel
• Card-slot: 1X SD slot
• Video Connector: aviation connector (audio/video/power 3in1)
• Audio/Video Output Connector: 2X RCA connector
• Menu Language: English

Video Recording

• Video Color: color
• Video Compression: H.264
• Video Format: D1 NTSC 720x480/PAL 720x576; HD1; CIF NTSC 352x240/PAL 352x288
• Monitoring Quality: 4CH D1/HD1/CIF full real time
• Playback Quality: 4CH D1/HD1/CIF full real time
• Recording Quality: 4CH D1/HD1/CIF full real time
• Recording Mode: manual/motion activate/timer recording
• Time Show: YYYY-MM-DD-HH-MM-SS
• Maximum Frame Rate Per Channel: NTSC 30fps/PAL 25fps
• Storage Time: 5/10/20/30/60 minutes/clip, selectable
• Pre-recorded Time: 5 seconds
• Delay Time: 10 seconds
• Auto Covered Cycle Recording: ON/OFF
• Motion Detection Recording: ON/OFF
• Data Rate (approximate): 7000kbps
• Audio Bit Rate: 64kbps
• Audio Sample Size: 16 bit
• Frequency Channel: 1(monophony)
• Audio Sample-level: 44 kHz
• Audio Format: PCM
• Storage Consumption (approximate): CIF 352X240/1.5GB/CH/Hour
• Turn ON/OFF: Auto ignition/manual/timer

Others

• Distance of Remote Controller (approximate): 10 m (32.8 ft.)
• Working Humidity: 20%~80%
• Work Temperature: -10 - +60C (14 - 140F)
• Playback On PC: 32bit Windows 2000/XP/Vista/7
• Power Input: DC 12-36V, Car battery
• Power Output For Camera: DC 12V
• Product Dimensions (approximate W x H x D): 168.9 x 41.5 x 162.9 mm; 585.2 g. (6.6 x 1.6 x 6.4 in.; 1.3 lb.)
• Exterior Material: Aluminum Alloy
