High mechenical - resistant strength tough thermal insulated window glass Saint Gobain

Delivery Time:5-15 days
Certification:CE, ASTM, CSI, etc

High mechenical - resistant strength tough thermal insulated window glass Saint Gobain

Low E insulated glass SAINT GOBAIN/Hollow glass/IGU/Double glazing glass is made of two or more pcs of glass sheets and use sealant gumming glass pcs and aluminum spacers which was filled with desiccant together. Low E insulated glass SAINT GOBAIN / Hollow glass/IGU/Double glazing glass with the perimeter of the spacer that gets in contact with the glass is properly sealed with primary and secondary sealants to ensure it is air tight.

Choosing insulated glass/hollow glass/IGU/double glazing glass, not only could get a brilliant indoor environment and meet the requirements of the fashion and style, but also could reduce the cost of energy power. This kind of IG unit can enhance a window’s thermal insulation up to 3 times resulting in reduction of energy consumption of up to 75% compared to a single glazed unit.

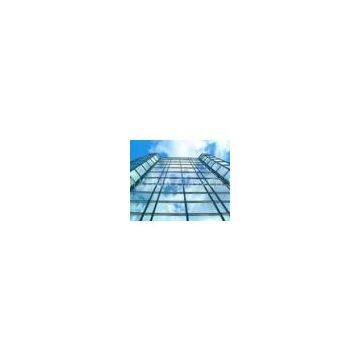

We have supplied various Low E insulated glass to many curtain wall projects in US and south America, mostly are commercial buildings, like Loft Hotel, Casino in Chile, Universities in USA, Uruguay airport, etc. We are honored as gold club membership of processing low e / reflective glass of SAINT GOBAIN, SAINT GOBAIN, Guardian, Saint Gobain Glass. Our main customer is oversea curtain wall companies and window and door companies.

Low E insulated glass SAINT GOBAIN/Hollow glass/IGU/Double glazing glass performance characteristics:

 l. Thermal insulation: with low heat gain and heat loss value (low U value)

 2. Light transmission: appropriate level of solar transmission and solar reflectance can be selected to meet the design and functional requirement.

 3. Noise insulation: IGU can reduce noise level by 30 dB. With inert gas in-filled, a 5 dB further reduction can be achieved.

4. Condensing prevention: The IG units are designed to withstand down to -65℃without condensing, far exceeding the National Requirement of -40℃.

5. Leak-proof: to ensure the IGU air tight, automatic bending machine is used for all four corners bending, with use of linear connector for the spacer. A dual seal system is adopted with PIB as primary seal, and silicone or polysulfide as secondary seal. We use advanced fully automatic IG production line from Lisec of Austria, with automatic production operations covering spacer bending, filling of desiccant, edge deletion of coated glass, glass assembly, filling with inert gas and application of primary and secondary sealants.

Low E insulated glass SAINT GOBAIN /Hollow glass/IGU/Double glazing glass is made of two or more pieces of glass with the middle part separated by the hollow AL tube which is filled with the drier. The hollow glass part is filled with dry air or inert gas and sealed by butyl glue, sulfur glue or structural sealant.

Applications:

Low E insulated glass SAINT GOBAIN / Hollow glass/IGU/Double glazing glass Applicable Range

The insulated glass/ Hollow glass/IGU/Double glazing glass is widely used in glass curtain walls, doors, windows and place with glass in automobile, ships, aircrafts and instruments.

Specifications:

Production Capability:

Maximum Size: 2500mm x 3500mm (except for manual production)

Minimum Size: 180mm x 350mm

Spacer Thickness: 6mm, 9mm, 12mm, 15mm, 16mm

Glass Ply Thickness: 3mm to 19mm

Quality Standard: ASTM E2190-02

Low E insulated glass SAINT GOBAIN / Hollow glass/IGU/Double glazing glass size:

Max: 2700mm*3700mm

Min: 350mm*180mm

Width of aluminum spacer: 6 mm, 9 mm, 12 mm, 15mm

Thickness: 5+6A+5~15+15A+15

Competitive Advantage:

Low E insulated glass SAINT GOBAIN / Hollow glass/IGU/Double glazing glass Performance Features

1. Low E insulated glass SAINT GOBAIN /Hollow glass/IGU/Double glazing glass filled with the inert gas is excellent in heat and sound insulation, meeting the requirement for saving energy and environmental protection.

2. Hoarfrost and dew effect can be eliminated.

3. High wind pressure strength.

4. Not easy to be self exploded.

5. When choosing coated glass as the basal pieces, the coated layer will not come off.
