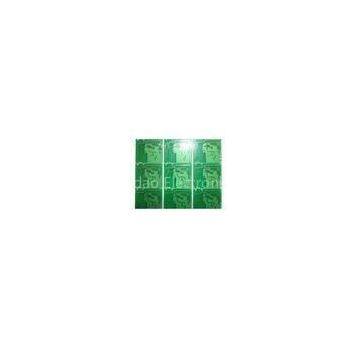

Help Center2 Layer PCB Board(HAL Lead Free Finished)
Related Products
-
2 Layer PCB BoardNegotiableMOQ: 1 Piece -
Green Solder Mask 2 Layer Aluminum PCB With Immersion Gold for Communication SystemNegotiableMOQ: 1 Piece
-
2 Layer Immersion Gold Polyimide 0.2mm Multilayer Flexible PCB Board For Game Machine, LEDNegotiableMOQ: 1 Set
-
2 Layer PCB Board ManufacturingNegotiableMOQ: 1 Carton
-
2 Layer Control Board PCB AssemblyNegotiableMOQ: 1
Certification:UL E354810,SGS
Welcome To Moko
2-18 Layer PCB Board Manufacturer
1.2 layer pcb board fabricate/layout
2.UL, SGS, Rohs Certificate
3.Competitive Price, Hgih Quality, Fast delivery
4.E-test, OEM Service are welcome
1.Detailed Specification of PCB Manufacturing
| 1 | Layer | 1-30 layer |
| 2 | Material | FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2 |
| 3 | Board thickness | 0.2mm-7mm |
| 4 | Max.finished board side | 500mm*500mm |
| 5 | Min.drilled hole size | 0.25mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spaceing | 0.075mm(3mil) |
| 8 | Surface finish/treatment | HALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
| 9 | Copper thickness | 0.5-4.0oz |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Inner packing | Vacuum packing, Plastic bag |
| 12 | Outer packing | Standard carton packing |
| 13 | Hole tolerance | PTH:±0.076, NTPH:±0.05 |
| 14 | Certificate | UL, ISO9001, ISO14001, ROHS, CQC |
| 15 | Profiling Punching | Routing, V-CUT, Beveling |
| 16 | Assembly Service | Providing OEM service to all sorts of printed circuit board assembly |
2.Detailed Terms for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206, 0805, 0603 components SMT technology
3) ICT(In Circuit Test), FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL, CE, FCC, Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA
3.View of Moko Manufactory
