Certification:UL E354810,SGS

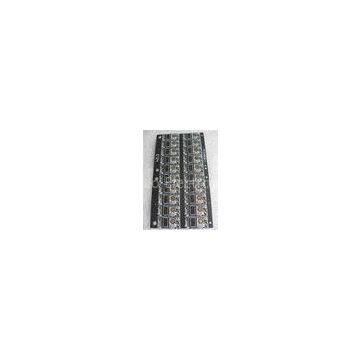

OEM CEM - 1, CEM - 3 material PCB Board Assembly 4 Layer with OSP, Gold plating surface
1, ISO90001:2000, UL, SGS
2, No MOQ
3, One-stop-service
4, good quality with good price .
The good quality and good price for pcb is our choose for you. Please give us your files of pcb for a quote. We can deal with CAM350, PCAD2002, PROTEL, Power PCB and PADS. We also can send you the samples for quality check when all is confirmed. Please see the parameter as follows:
1)material: FR-4, FR-1, CEM-1, CEM-3, FR-4 Halogen Free
2)layer: 1-12
3)board thickness: 0.4mm-3.2mm
4)copper thickness: 0.5oz, 1.0oz, 2oz, 3oz,
5)min. Drilled hole size: 0.2mm
6)min. Track width/space: 4/4mil(0.1/0.1mm)
7)surface finish: HASL, Lead free HASL, OSP, Gold-plating, Chemical silver, Chemical gold(ENIG), Chemical tin, Carbon ink.
8)solder mask color: Green, yellow, black, white, red, blue
9)profiling: Punching, Routing, V-cut, Golden finger, Beveling
10)V-cut angle: 20, 25, 30, 45 degree
11)Beveling angle: 20, 25, 30, 45 degree
12)Max working panel: 24*20 (610mm*508mm)
13)E-test voltage: 50-300V
14)Certificate: UL, ISO9001, ISO14001, ISO/TS 16949, RoHS
15)Impedance control:
Microstrip impedance: 50-60Ω, Tolerance: +-10%
Differential Impedance: 90-120Ω, Tolerance: +-10%
16)Quality standard: IPC-A-600F.
