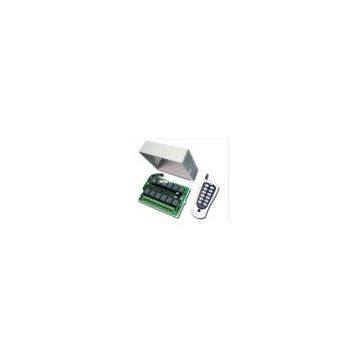

12V 12 CH RF Wireless Remote Control Switch System (transmitter and Receiver)Radio Controller

Product Description

Main Function:
Control Lights, TV, Motors, Fans, Cameras, Video Signals, Audio Signals, Electric Doors/Locks/Windows/Curtains/Cars or Other Appliances with voltage AC 110~240V or DC 0~28V.

You can turn on/off the receiver with transmitter (remote control) from any place, the wireless signal can pass through walls, floors, and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bits code.

One/several transmitters can control one/several receivers.
If you use two or more receivers in same place, you can set them with different codes.
Transmitting Frequency: 315MHz/433MHz.

here is in set , we have make it work together ,so you don't have to care about what frequency are they )

Specification of receiver:

model:AK-RK12S-12

Channel: 12 CH channel
output/working way : jog , inter-lock . self -lock (can be change on yourself )

Jog-----press one button is "ON" . loosen your finger on the same button is"OFF".need one channel switch and one buttons remote control )

Self -lock------ press one button for one time is "ON" .press the same button again is "OFF" .(need one channel switch and one buttons remote control

Inter-lock ------- press one button is"ON",press another button is "OFF" . (need one channelswitch and 2 buttons remote control

please note that : it is the control system in set here .you just can choose jog or self-lock working/output way here .for there are 12CH and 12buttons .

Decode: Learning code (it can learn serveral remote control and the working way can sbe changed )

How to learn changed the output /working way

Channel: 12buttons/keys
Remote control distance: 1000m-3000M(ft)
Encode: Fixed code, Soldering
Size: 125mm x 49mm x 20mm
Power Supply: 1 x 23A-12V battery (included)

Package include:
12CH receiver / SwitchX1

12buttons remote controller *1

with the cover .waterproof ,dustproof .
a

Power Supply (Operating Voltage): DC12V
Relay: 10A/120VAC, 20A/14VDC
Work Voltage Range of Relay: AC 110~240V or DC 0~28V
Receiver Box Size: 100mm x 80mm x 30mm
State current: ≤6mA
