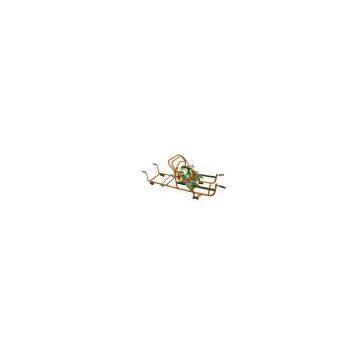

NCM-4.8 Turnout Rail Grinding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
NCM-4.8
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Petrol Engine Tamping PickaxeNegotiableMOQ: 1 Piece -
BoltsTie Dowel Drilling and Pulling MachineNegotiableMOQ: 1 Piece
-
Rail Sleeper Nylon Drilling and Pulling MachineNegotiableMOQ: 1 Piece
-
NQG-1250 Petrol Engine Rail CutterNegotiableMOQ: 1 Piece
-
QG-4 Electric Rail Cutting MachineNegotiableMOQ: 1 Piece
Place of Origin
China
Model Number
NCM-4.8
Application:
It is mainly used to polish the defects of the rail ends and the overlap on the bifurcation point of the rail, also can be used to grind the flash burrs of the rail edge.
Feature:
1.Grinding device can be adjust freely in five directions, the directions are: moving along with the X axis, Y axis, Z axis and turning around with Y axis and Z axis.
2.The telescopic brackets device can be adapted to different gauge of operation.
3.The walking rollers are made of insulation materials. Ensure that the equipment body is insulation from the track.
4.The feed rates of grinding wheel can be adjusted accurately, which is convenient for operation.
Main technical parameter:
1. Engine type: GX200 Engine power:4.8kw /3800 rpm.
2.The matching grinding wheel’s overall dimension(external diameter×bore diameter×thickness):φ260×φ120×25(mm).
3.Output shaft speed:3500 rpm.
4.overall dimension(long×wind×high):2250×780×850(mm).
5.Machine weight:100 kg.
