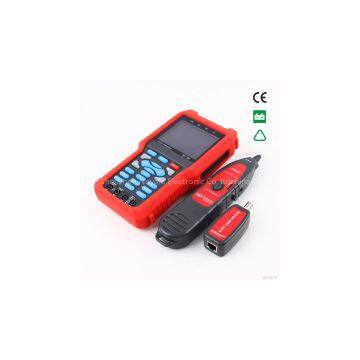

Help CenterCctv Monitor Tester & Cable Tester NF-706 & Multimeter
Related Products
Main Features:
1. SD video formats NTSC/PAL Automatically adapt and display formats.
2. PTZ control . Pan/tilts the P/T unit, zooms in/out the lens,adjust the focus, aperture and sets and call the preset position.
3. Video signal analysis, by analyzing the sync level measure video signal amplitude attenuation.
4. Input Audio signal,test pickups and microphone audio signal.
5. The PAL/NTSC multi-system color bar video generator
6. 485 Control Interface .Support Baud Rates with 2400/ 4800/ 9600 .
7. Multi-Protocol . Support more than 20 kinds PTZ protocol, such as PELCD-D, PELCD-P,SAMSUNG,MINKING etc .
8. Date analyst. Captures and analyzes RS 485 controlling date to help the technician to find out the problem.
9. multimeter functions, DC & AC voltage / Resistance / Continuity measurement .
10. Check open,short,cross reverse wiremap for RJ45 and BNC cable, results shows on the display.
11. Trace and locate RJ45 BNC and other metal cables.
12. Test cables when open circuit . Measure cable length for BNC.Max length 620m .
