Description:

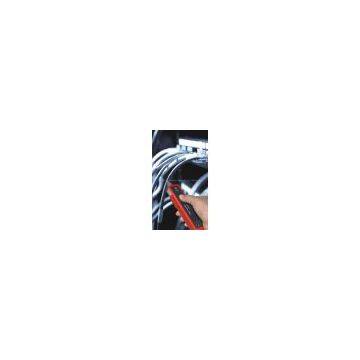

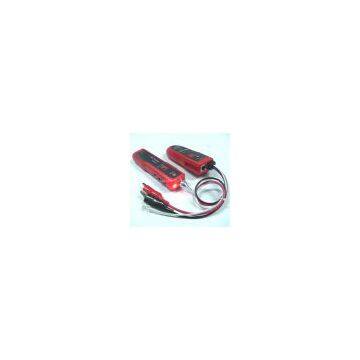

NF-806 is a multifunctional tone generator and probe . it owns the three main functions of tracing, locating cables and testing cable status. It is the ideal tool for telecommunications
Key features:
1.Great ergonomic design and handy.
2. A reliable and economical tool.
3. Quickly find the pair cables among so many cables.
4. The function of speed regulating: choice speed on testing.
5. The function of speed and frequency changing: speed choice on testing
6. Provide Earphone used in very noisy environment.
7. Security: safety using (the probe can directly contact bare gold line).
Main Function:
1.Trace telephone wire/LAN cable
2.Trace wire in electrical system
3.Verify LAN cable condition
4.Cable assignment test: Open, short and cross of LAN cable,
2-wire (RJ11)/4-wire (RJ45)telephone cable.
5.Cable state testing (2-wire):
1) Line DC detecting, anode, and cathode determination
2) Ringing signal detecting
3) Open, short, and cross test
6.Continuity test
7.Low battery indication
8.Bright white LED flash light
Specification:
|
The max working current |
Emitter<=10mA |
|
Receiver<=30mA |
|
|
Signal transmission format |
Multi-frequency impulse |
|
Signal output electric status |
8Vp-p |
|
Distance of signal transmission |
>=3km |
|
Volume Regulate Function |
Yes |
|
Earphone for noise environment |
Yes |
|
Sensitive |
induction distance less than 20 mm, strong anti-jamming ability |
|
Storage Temperature |
-20 to 50C |
|
Operation Temperature |
-10 to 40C |
|
Battery |
DC 9V terrace battery |
|
Battery life time |
>50hrs continuous use |
Measurements:
|
|
Emitter |
126x49x34,mm |
|
Receiver |
175x42x27,mm |
|
|
Whole set |
270x165x45,mm |
|
|
Weight |
Emitter |
0.060kg |
|
Receiver |
0.072kg |
|
|
Whole set |
0.420kg |
