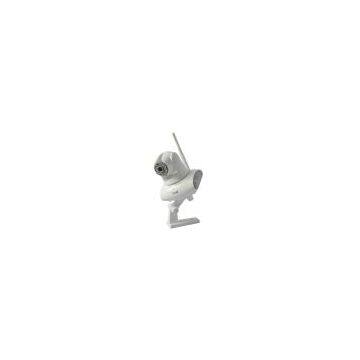

H.264 alarm cctv ip surveillance camera for home or business
Features:
Wireless indoor P/T IP camera
H.264, Double code stream output
CMOS 300k pixel
Two way audio
Built-in IR cut, no color cast
IR distance: 10m
Pan/tilt: P=355°T=120°
Support most of intelligent phone(such as Iphone, Android)
Support 32G TF card, support alarm recording and picture memory, Support EasyN NVR
Specifications:
|
Model:H3-M137 |
||
|
Features |
Superiority |
Support monitor via cellphone or computer, certified by Microsoft activeX, no worry to be invaded by virus, support most of intelligent phone(such as Iphone, Android) |
|
mobile software |
Provide special software for the iPhone or android mobile phone |
|
|
DDNS(free) |
Built in free DDNS system, dedicated domain name and no need to apply the peanut shell, bounded solve the problems of frequently offline. like http://demo.easyn.hk,'demo' is serial code |
|
|
CMS software |
EasyN multi-window mangement software ,remote recording |
|
|
System security |
Supports three-level account, password, user multi-level authority management |
|
|
Local memory |
Support 32G TF card, support alarm recording and picture memory, Support EasyN NVR |
|
|
CPU |
Operation system |
Embedded Linux OS |
|
Microcomputer processor |
32Bit RSIC Embedded Processor |
|
|
Network |
Network interface |
RJ45 10/100MB self-adaptable Ethernet slot |
|
Protocol |
HTTP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP |
|
|
Wireless |
Wifi802.11 b/g/n |
|
|
IP mode |
Dynamic IP address, static IP address, PPPOE |
|
|
|
Online visitor |
Main stream support 5 visitors at the same time |
|
Time stream support 6 visitors at the same time |
||
|
Video |
Compression format |
H.264,Double code stream output |
|
Image sensor |
CMOS 300000 pixels |
|
|
Lens |
3.6mm |
|
|
Frame rate |
1~25 fps |
|
|
Resolution |
VGA(640*480),QVGA(320*240),QQVGA(160*120) |
|
|
Image adjustment |
Brightness, contrast, saturation, hue |
|
|
WB, BLC |
Auto |
|
|
LUX |
0.3LUX/F2.0 |
|
|
SNR |
>48dB |
|
|
Audio |
Compression format |
G.726/G.711 format |
|
Input |
Two way audio, one channel linear input(active MIC), one channel linear output |
|
|
Output |
output |
|
|
PTZ |
Motor |
Built-in motor control |
|
Rotation angle |
Horizontal:355°,vertical: 120° |
|
|
Preset |
No |
|
|
PTZ Protocol |
No |
|
|
Nightvision |
Filter switch |
auto-switch automatically, without color cast |
|
Nightvision |
8Φ5 LED lights, IR distance: ,10m |
|
|
Alarm |
Input/output |
I/O Input/output |
|
Alarm detection |
Motion detection |
|
|
Detection area |
Support 4 detection areas |
|
|
Alarm notification |
Email notification, FTP upgrade alarm record (insert TF card), save the recording and picture to TFcard |
|
|
Others |
Shape material |
Plastic(ABS) |
|
Environment |
indoors |
|
|
Power supply |
DC5V 2A |
|
|
Operating temperature |
-10~+50°C |
|
|
Operating humidity |
10%~90% |
|
|
Dimension |
Item size: 120x120x130mm (L*W*H) |
|
|
Package size: 170x170x170mm (L*W*H) |
||
|
Weight |
Item weight:325g(Note: for real products) |
|
|
Package weight:695g (Note: for real products) |
||
|

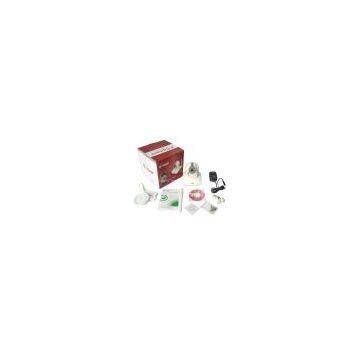

Accessories |
Power adapter, CD, manual, screws ,bracket,antenna |
|
|
System |
System requirement |
Microsoft WinXP,Vista ,win7, IE6.0,7.0,8.0,9.0, NET4.5,firefox,chrome etc. |
|
Certification |
Certificate |
ISO FCC CE RoHS |
