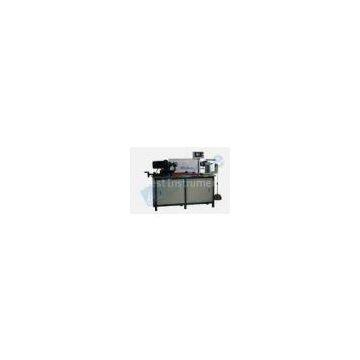

XND-25 Electronic Wire Torsion Testing Machine, High Precision Torsion Testing Equipment
The XND series of wire torsion testing machine is mainly designed to inspect the plasticity and non-uniformity of specimen under torsion by the rotation turns when it breaks and the state of its surface. This product features a well-made frame, an efficient structure and high precision and stability, meanwhile easy and safe to operate. This product complies with the standards and requirements of GB/T 239-1999, YB/T 4176-2008.Features:
TFT true-color LED screen to display current rotation, target rotation turn and configured speed. No stepping in speed adjustment. Automatic data recording. Rotation speed and turns configurable. Automatic stop when reaches target rotation turns or specimen breaks. Distance between grip jaw continuously adjustable by moving the ball screw. Stably and reliably controlled through human interface and PLC. Stainless table makes it easier to clean. Equipped with translucent safety shield to prevent specimen from popping out when it breaks. More reliable hydraulic gripping means for wires in large diameter.Technical Specifications:
|
Model |
XND-3 |
XND-6 |
XND-10 |
XND-12 |
XND-20 |
XND-25 |
|---|
Specimen diameter (mm)
0.2～3
1～6
3～10
6～12
6～20
6～25
Grip Jaw distance (mm)
10～300
100～600
250～500
300～500
300～500
300～550
Torsion Method
Single-way, two-way
Rotation range
1～9999
Torsion speed range (turns/min)
60～180
15～60
15～60
15～60
2～30
2～30
Power supply
0.55kW/AC220V
0.75kW/AC220V
1.5kW/AC380V
2.2kW/
AC380V
9kW/AC380V
12kW/AC380V
Frame dimensions (mm3)
1160×460×1200
1650×500×1200
2050×500×1200
2050×500×1200
2800×600×1300
3000×600×1300
Weight
Approx. 250 kg
Approx. 350 kg
Approx. 850 kg
Approx. 950 kg
Approx. 3500 kg
Approx. 4000 kg
