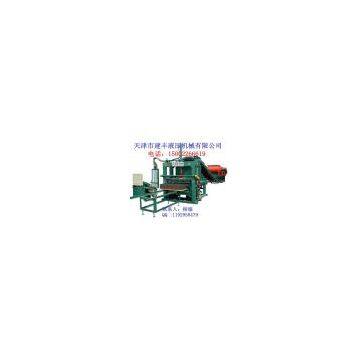

JF-ZY1500C Multifunctional Jolt-squeeze Type Walk&Floor Brick Forming Machine
Main technical parameter
|
number |
Ltem |
Parameter |
|
1 |
A ctuating shock force |
68KN |
|
2 |
Frequency shock |
5000Time/minute |
|
3 |
Amplitude |
15mm |
|
4 |
Noise |
95bd(A) |
|
5 |
Shock time |
6Second/Time |
|
6 |
Overall dimension |
3000*2300*2900(mm) |
|
7 |
Installde capatity |
20.7KW |
|
8 |
Weight of complete machine |
7T |
|
9 |
Maximum pressure |
10T |
|
10 |
Give plank size |
1100*580*20(mm) |
|
11 |
Operation number |
10Person |
|
12 |
Use a ground of area |
≥4000㎡ |
|
Product specification (L×W×H)(mm) |
Modelnumber |
Per hour yield |
Produce period |
|
Standard brick 240*115*53(mm) |
32 Pieces |
4800 Pieces |
24 Second/Time |
|
Hollow brick 390*190*190(mm) |
5 Pieces |
750 Pieces |
24 Second/Time |
|
S brick 225*200*60(mm) |
16 Pieces |
2880 Pieces |
24 Second/Time |
|
Bread brick 198*98*60(mm) |
18 pieces |
2700 Pieces |
24 Second/Time |
|
Multihole brick 240*115*90(mm)
|
16 Pieces |
2880 Pieces |
24 Second/Time |
|
Border brick 1000*150*300(mm) |
1 Pieces |
90 Pieces |
35 Second/Time |
Feature
1. This machine is upgraded into 18blocks of bread bricks pressed each moulding so as to greatly raise the production efficiency and to reduce the cost.

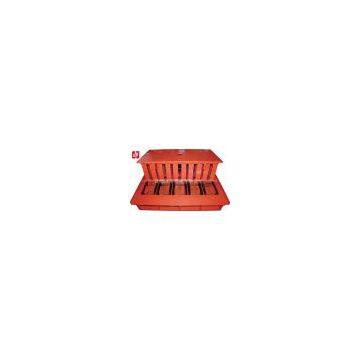

2. Dies can be freely changed ,so as to realize “one machine,but diversification”.
3. With four-pillar guiding and patented lengthened guide sleeve,the structure is firm and durable.
4. Supporting facilities are complete,so as to raise the degree of mechanization and to save the human resource greatly.
5. Compulsory die synchronized structure so as to ensure the uniformed thickness of products ,stable demouding and high rate of finished products.
6. Realize the automatisation of plates’ coming in &out,aggregate,shock and pressing.
