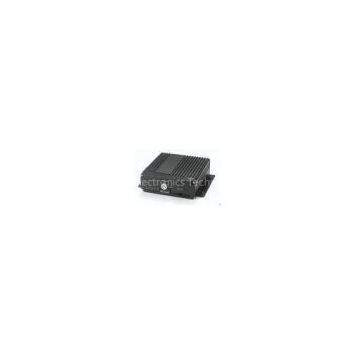

1 - 4 Channels G.726, 5KB/S GPS SD 3G Mobile Car DVR With CIF, HD1, D1 Resolution

Item

Description

Operating System

Linux (2.6)

Video Compression

H.264

OSD

Overlays letters and logo… like some date&time info and vehicle ID into video streming.

GUI

Graphical User Interface

Setup system parameters through the remote control.

Video and Recording

System

Video input

1-4 channels input, 4 CVBS, 1.0Vp-p, 75Ω

Video output

1CH output, CVBS, 1.0Vp-p, 75Ω, single or quad monitor

Preview

Support 1 channel and 4 channels preview. Also can preview through PC, with PC Viewer software.

Recording Resolution

Support CIF, HD1, D1 resolution optional, maximum 2CH of D1 & 2CH of CIF.

Video Quality

1-4 levels, 1 is the highest level , 4 is the lowest level.

Recording Speed

PAL: 100Frame/s , CCIR625 line, 50 field

NTSC: 120Frame/s, CCIR525 line, 60 field

CIF: 256Kbps ~ 1.5Mbps, 4 quality level support,

HD1: 600Kbps ~ 2.5Mbps, 4 quality level support

D1:  800Kbps ~ 3Mbps, 4 quality level support

Video stream

ISO14496-10 standard

Recording Mode

Default auto recording after power on, support timed recording, alarm  recording

Audio

Audio Input

Mic or line in, 1 channel

Audio Output

1 channel output, output voltage: 1V ~2V

Compression

G.726,   5KB/s

Playback

System

Video Search

Search video via time, type(normal or alarm), target SD card

Playback

Support 1 to 4 channels playback.

Support forward and backword at the speed of: x 2, x4, x8, x16.

Alarm

Input

Support up to 4 channels alarm input.

Alarm recording: include the recording with
