Help CenterHydraulic Press for Pipe Bending
Related Products
-
Intermediate Frequency Heating Pipe Bending MachineUS$ 200000 - 120000MOQ: 1 Set -
Steel Pipe Bending Hydraulic MachineUS$ 30000 - 30000MOQ: 1 Piece
-
Round and Square Tube Bending MachineUS$ 50000 - 50000MOQ: 1 Set
-
Pipe Bending MachineUS$ 40000 - 40000MOQ: 1 Set
-
Steel Pipe Bending MachineUS$ 40000 - 40000MOQ: 1 Set
|

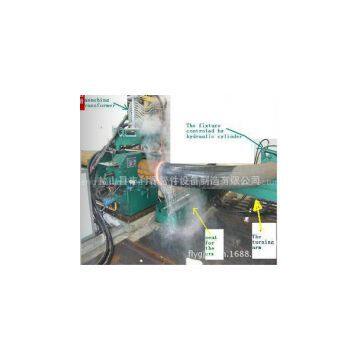

The Main Technical Parameters of The Pipe Bending Machine 1、 Master cylinder： OD:299mm, inside diameter: φ250mm diameter of the rod: φ210mm effective stroke: 11 m the max thrust of the 2 cylinders 210T The other small cylinders: φ125mm -2 pieces （for clamping） 2、 Hydraulic pump station a、station configuration: 25scy plunger pump 1 set 、 7.5KW Motor 1 set ( to converse frequency adjust the speed of the master pump) CB-100 gear pump 1 set 、15KW Motor 1 set ( fast forward and backward，). 40scy plunger pump 1 set,11kw motor 1 set (to guide clamp wheel、fixture motor) The working speed ; 0-500px/min , the maximum returning speed:7000px/min 3、The guiding part of the main machine is controlled by four wheels, the pushing board moving on the dovetail groove guiding rails. the clamp holding different size run By the hydraulic motor, it open and closed driven by the oil cylinder, the oil cylinder drive the rocking arm to adjust the bending radius. 4、Medium—frequency power supply (SCR)： power:600kw. Quenching transformer: 3000kva. 5、the total power of the machinery: 35KW，380V or 220V,50or60HZ. 6、Assembly parts
E-Mail: flygjsb@126.com Skype：shonepole Mobile:0086-13283260069 TEL: |
