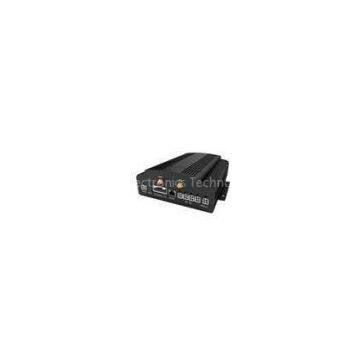

VC-MDRH3004G Series is a high level hard disk mobile digital video recorder specially designed for
vehicle surveillance purpose. It adopts high speed processor and embedded operating system, and
applies various advanced technologies in IT field, such as A/V codec, high capacity hard disk storage,
network streaming media, A/V noise reduction, wide range voltage design.
|
Key Features |
Industrial level design；
Advanced audio/video compression technology;
4-channel audio/video input;
ASF standard file format;
3G, GPS, G-sensor , Wi-Fi modules optional；
Local and remote PTZ control；
Data redundant storage technology；
Patent UPS power-off protection design；
Fast startup；
Optional function: Bi-directional voice communication, telephone dialing, hard disk pre-heating；
Central management software provided(optional).
|
Application |
Bus, School bus, Logistics vehicle, Taxi, Police car, Special purpose vehicle, Train/metro, Ship/boat
|
Specifications |
||
|
Item |
Description |
|
|
Operation system |
Linux |
|
|
GUI |
Setup system parameters with remote controller |
|
|
Security management |
Support user password, supervisor password management; support encryption transmission |
|
|
Video |
Video input/output |
4-channel CVBS video input, 1-channel CVBS video output; 1.0Vp-p, 75Ω |
|
Dual stream |
Support |
|
|
OSD |
Time & date, vehicle ID, GPS etc |
|
|
Compression |
H.264. Hisilicon high performance processor is applied. |
|
|
Preview function |
Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function |
|
|
Video frame rate |
PAL: 100 frame/sec, up to 25 frame/sec for single channel NTSC: 120 frame/sec, up to 30 frame/sec for single channel |
|
|
Video resolution |
CIF, HD1, D1 adaptive, support up to 2 channels D1 + 2 channels CIF |
|
|
Video quality |
Level 1 to 5 video quality adaptive, level 1 best, level 5 lowest |
|
|
Video Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8 levels of bit rate optional HD1: 600Kbps ~ 2 Mbps, 8 levels of bit rate optional D1: 800Kbps ~ 3Mbps, 8 levels of bit rate optional |
|
|
Audio |
Audio input/output |
4-channel input; 1-channel output |
|
Compression |
G.726 |
|
|
Recording |
Storage media |
Support one 2.5 inch hard disk and one SD card with 32G maximum capacity |
