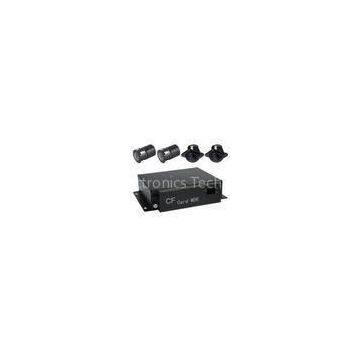

Portable D1/ CIF 4 CH USB 2.5 Inch Hard Drive Mobile DVR with GPS with RS232 connector

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 0 per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Zhengqi

Place of Origin

China

Product Description

Delivery Time:5--7work days after receive your payments

Portable D1/ CIF 4 CH USB 2.5 Inch Hard Drive Mobile DVR with GPS with RS232 connector

Key Features

Provide Video output forplaying-back mode in main frame. Recording format:D1 and CIF H.264 High Profile video compressionl. Userfriendly player software, easytooperation. The full recording time and date can be showing in the monitordirectly. Support from +8V DC to +32VDC. Applicable for vehicles with +12V or +24V battery.. Auto-run recording afterhard disk plug-in and power supplied. Support schedule recording. Special good anti- vibration performance. Provide 1-4 set of alarm input ports. Firmware can be upgraded via USB port. Support recording audio, video and G-sensor at the same time. GPS for optional.

Descriptions

It’s designed to meet demanding security applications such as public transportation, law enforcement and military. This Mobile DVR is mounted on a small, rugged, vibration and shock resistant bracket, allows recorded video to be quickly exported through it’s an extra USB2.0 HDD Reader.

This Mobile DVR supports 1 or 4 channels of video, 1 channels of audio and gives users the option of selecting recording resolutions from CIF(352x288) to D1 (704x576). The removable hard drive stores recorded video and can be removed and connected to a standard PC to view recorded video. It supports GPS function for optional. This mobile solution comes complete with everything required for simple installation.

This mobile solutions are currently being used in the following applications:

Law Enforcement - Patrol Cars Military - Tanks Emergency – Ambulances, Fire Trucks Public – Buses, Trains, Railways, Subways Commercial – Boats, Heavy Equipment, Limousines, Taxis, Vans Transportation - Freight Liners Aviation – Helicopters, Commercial and Private Aircraft

Specifications

Item	Parameter	Description
System	Language	Chinse Simplified/Chinese Traditional/ English/Japanese /other language could be order
Interface	Graphical User Interface
Security	Key protected
Video	Video Input	4 channel video input, 1.0V, p-p, 75Ω, BNC and air connector
Video Output	1 channel vidoe output, 1.0V, p-p, 75Ω, BNC and air connector
Display	1/4 channel display
Video Standard	PAL (25fps)/ NTSC (30fps)
Audio	Audio Input	1 channel audio input, 20KΩ
Audio Output	1 channel audio output, 500Ω, 1V ~2V, p-p
Recording mode	Audio and video simultaneously recording
Compression	AAC
Storage	Video Compression	H.264 High Profile
Resolution	D1 at 100fps (PAL)/ 120fps (NTSC)
Video bitrate	D1: 200Kbps ~ 2Mbps, 3 selectable quality
Audio bitrate	8KB/s(Compressed)
Storage	2.5 Inch Hard Drive
Alarm	Alarms	4 CH
