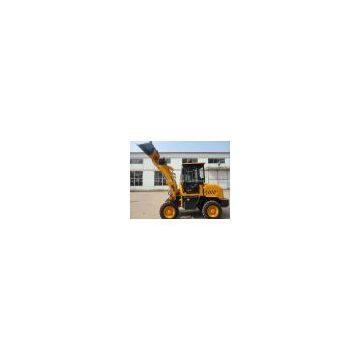

Help CenterHot Offer 600kg Loader Model ZL06F With CE Certificate
Related Products
Detailed Product Description
Smaller loader;Mechanical drive
Sugar cane loader
Building machinery
Grass loader
Lift capacity:600kg
Features:
Using 750-16 tyres to increase the stability of the whole machine;
1. Running system adopts mechanical drive, and this compact wheel loader uses short wheel base and 130 axle to make it only 1260mm wide, short and flexible;
2. Power system adopts CHANGCHAI L24 single-cylinder engine to make the machine energy saving and environmentally friendly with high working efficiency;
3. Drive mode of this mini wheel loader adopts 4-wheel drive to make it light and flexible;
4. This small wheel loader can be equipped with optional quick hitch (quick coupler), and this quick hitch enables this compact wheel loader to change quickly among multiple accessories, such as hay grapple, grass grab, log grab, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow blade, snow bucket, drum grab and barrel grapple, etc.
Performance
| Rated Load | 600 kg |
| Total Weight | 1860 kg |
| Rated Bucket Capacity | 0.3 m3 |
| Max. Tractive Force | 25 KN |
| Max. Breakout Force | ≥ 20 KN |
| Max. Gradeability | 38° |
| Dumping Height | 2350 mm |
| Dumping Reach | 800 mm |
| Raising Time | ≤ 4.5 s |
| Total Cycle Time | ≤ 8.5 s |
| Overall Dimensions (L x W x H) | 4300*1300*2400 mm |
| Min. Turning Radius | 3000 mm |
Engine
| Model | CHANGCHAI L24 |
| Type | Single-cylinder, Horizontal, Water-cooled Evaporative, Four-stroke Engine |
| Rated Power | 15.5 kW/17 kW |
| Rated Speed | 2200 rpm |
| Min. Fuel Consumption Ratio | ≤ 244.8 g/kW·h |
Transmission
| Mode | Mechanical Shift |
| Gear Shift | 2 Forward, 1 Reverse, High & Low Speed |
| Max. Speed | 25 km/h |
Drive Axle
| Model of Axle | 130 Drive Axle |
| Wheel Tread | 1100 mm |
| Wheel Base | 1760 mm |
Drive
| Mode | 4-wheel Drive |
Hydraulic System
| System Working Pressure | 16 Pa |
| Fuel Tank Capacity | 50 L |
Brake System
| Service Brake | Drum Brake |
Tyre
| Type Specification | 750-16 |
| Front Tyre Pressure | 0.40 Mpa |
| Rear Tyre Pressure | 0.35 Mpa |
