Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > ZL15F Hydraulic Wheel Loader With CE
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GUOHUA
Place of Origin:
China
Model Number:
ZL15F
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
GUOHUA
Place of Origin
China
Model Number
ZL15F
Detailed Product Description
1)new wheel loader with CE2)Turning radius:3500mm
3)1.5T mini loader
4)Tire model:14/90-16
5)loader Export to America,Uk
Features:
- Adopting hydraulic-mechanical transmission that can make the best use of engine power, realize automatic continuously variable transmission according to the external resistance, avoid engine stall due to the sudden increase in external load, and can also absorb and eliminate the vibration and shock of the external load to the engine to protect the transmission system and the engine and improve the service life of the whole machine, which make the machine easy and comfortable to operate and have higher economical and production efficiency;
- Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;
- Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, trafficability and more traction;
Performance
| Rated Load | 1500 kg |
| Total Weight | 3400 kg |
| Rated Bucket Capacity | 0.7 m3 |
| Max. Tractive Force | 30KN |
| Max. Breakout Force | ≥ 32 KN |
| Max. Gradeability | 38° |
| Dumping Height | 2800 mm |
| Dumping Reach | 1000 mm |
| Raising Time | ≤ 5.0s |
| Total Cycle Time | ≤ 9.5 s |
| Overall Dimensions (L x W x H) | 5060*1690*2630 mm |
| Min. Turning Radius | 3200 mm |

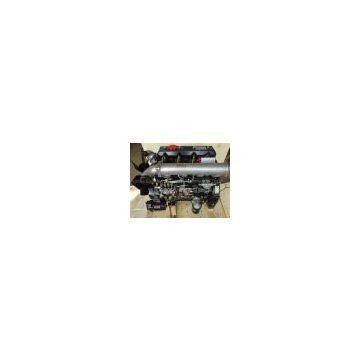

| Model | XINCHAI A498BT1 (EURO III) |
| Type | Four-cylinder, Inline, Water-cooled, Four-stroke Engine |
| Rated Power | 36.8 kw |
| Rated Speed | 2400 rpm |
| Min. Fuel Consumption Ratio | ≤ 230 g/kw·h |
| Hydraulic Torque Converter | ZL265 Integrated Torque Converter |
| Gear Shift | 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed |
| Max. Speed | 25 km/h |
| Model of Axle | 50 Axle |
| Wheel Tread | 1430 mm |
| Wheel Base | 2170 mm |
| Mode | 4-way Drive |
| System Working Pressure | 16 Pa |
| Fuel Tank Capacity | 86 L |
| Type Specification | 12-16.5 |
| Front Tyre Pressure | 0.40 Mpa |
| Rear Tyre Pressure | 0.35 Mpa |
