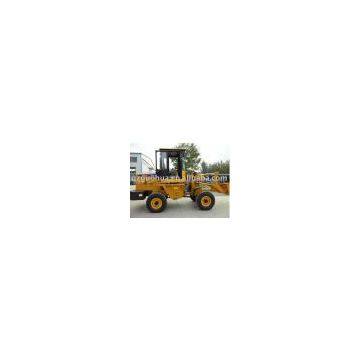

Use: Wheel loader ZL10F is widely used in construction works, public works, urban and rural parks, highway and transportation, station and wharf, and irrigation and water conservancy, as well as various coal pits, limekiln, coal yard, sand and stone quarry, cement mill, etc. It is especially applicable in narrow sites to shovel and load or transfer loosing soil, sand and stone, coal cinder, lime, fertilizer, trash and other loosing materials. This mini wheel loader can be used together with various trucks, tractors farm vehicles and construction machineries (sand mixer, pug mill), etc.
Features:
1. Using 1100-16 ultra-wide tyres to increase the stability of this mini whole machine;
2. Running system adopts 5-shaft mechanical gearbox and shaft-drive mode;
3. Power system adopts XINCHAI 490 or CHANGCHAI 485 engine to make this compact wheel loader energy saving and environmentally friendly with high working efficiency;
4. 4-wheel drive and fully hydraulic steering make this mini wheel loader light and flexible;
5. The gear shift of this small wheel loader has 3 forward and 1 reverse shifts, and the drive axle of this small wheel loader adopts 50 axle;
6. This compact wheel loader can be equipped with optional quick hitch (quick coupler), and this quick hitch enables this compact wheel loader to change quickly among multiple accessories, such as hay grapple, grass grab, log grab, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow blade, snow bucket, drum grab and barrel grapple, etc.
Performance
| Rated Load | 1000 kg |
| Total Weight | 2530 kg |
| Rated Bucket Capacity | 0.5 m3 |
| Max. Tractive Force | 30 KN |
| Max. Breakout Force | ≥ 32 KN |
| Max. Gradeability | 38° |
| Dumping Height | 28000 mm |
| Dumping Reach | 980 mm |
| Raising Time | ≤ 4.5 s |
| Total Cycle Time | ≤ 8.5 s |
| Overall Dimensions (L x W x H) | 4800*1650*2600 mm |
| Min. Turning Radius | 3000 mm |
Engine
| Model | CHANGCHAI ZN485Q/XINCHAI 490 |
| Type | Four-cylinder, Inline, Water-cooled, Four-stroke Engine |
| Rated Power | 36.8 kW/29 kW |
| Rated Speed | 2200 rpm/2400 rpm |
| Min. Fuel Consumption Ratio | ≤ 215 g/kW·h |
Transmission
| Mode | Mechanical Shift |
| Gear Shift | 3 Forward, 1 Reverse |
| Max. Speed | 25 km/h |
Drive Axle
| Model of Axle | 50 Drive Axle |
| Wheel Tread | 1370 mm |
| Wheel Base | 2150 mm |
Drive
| Mode | 4-way Drive |
Hydraulic System
| System Working Pressure | 16 Pa |
| Fuel Tank Capacity | 70 L |
Brake System
| Service Brake | Foot Drum Brake |
| Parking Brake | Hand Flexible Shaft Controlled Disc Brake |
Tyre
| Type Specification | 1200-16 |
| Front Tyre Pressure | 0.40 Mpa |
| Rear Tyre Pressure | 0.35 Mpa |
