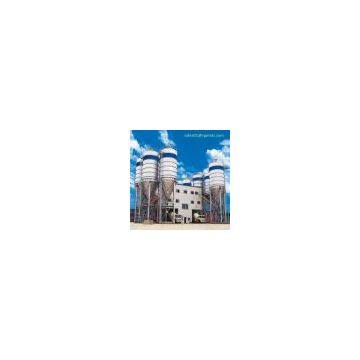

Help Center120 M3/h Mixig Capacity Concrete Mixing Plant HZS120
Related Products
-
Stationary Belt Concrete Mixing Plant HZS150US$ 1000 - 99999MOQ: 1 Set -
High Mixing Capacity Concrete Mixing Plant HZS180US$ 1000 - 99999MOQ: 1 Set
-
Hopper Lift Type Concrete Mixing Plant on PromotionUS$ 1000 - 99999MOQ: 1 Set
-
Stationary Hopper Lift Concrete Mixing Plant HZS35US$ 1000 - 99999MOQ: 1 Set
-
Mixing Capacity 60m3/h Concrete Mixing Plant HZS60US$ 1000 - 99999MOQ: 1 Set
The main characteristic is:
- The machine adopts JS2000(JS2000B)concrete mixer, it has good mixing quality and high efficiency.
- The batching machine is adopts PLD3200Q-Ⅳ,is measuring nicety and high produce efficiency.
- The forced water supply system spray equably and has washing function for the mixing system.
- It adopts the electrical weigh system to measure all the aggregate, cement, water, liquid additive.
- The hoist electromotor adopts safe drive, it prolong the service life.
|
Theoretical production rate |
m3/h |
120 |
|
Discharge Height |
m |
4 |
|
Mixer Model |
|
JS2000 |
|
Power of Mixing Plant |
kw |
2×37 |
|
Theoretical production cycle |
s |
60 |
|
Volume of Mixer weighed outlet |
L |
2000 |
|
Maximum Aggregate Size |
mm |
80 |
|
Volume of Powder Bin |
t(ρ=1.35) |
100×3 |
|
Volume of Aggregate Bin |
m3 |
12×4 |
|
Type of Aggregate |
|
4 |
|
Installed capacity |
kw |
188 |
|
Weighing scope and Measuring Accuracy of Aggregate |
kg |
(0~3000)±2% |
|
Weighing scope and Measuring Accuracy of Cement |
kg |
(0~1200)±1% |
|
Weighing scope and Measuring Accuracy of Coal Ash |
kg |
(0~500)±1% |
|
Weighing scope and Measuring Accuracy of Water |
kg |
(0~500)±1% |
|
Weighing scope and Measuring Accuracy of Additive |
kg |
(0~50)±1% |
We customized to your favorite colors and configurations according to your project demands. Send us your demand today!
