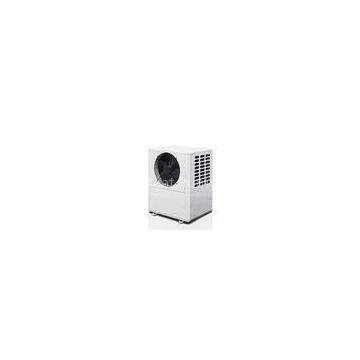

Air to Water Electric R410a Low Temperature Air Source Heat Pumps, Residential Heat Pump

Shenzhen Taiyu Heat Pump Co.,LTD
Air to Water Electric R410a Low Temperature Air Source Heat Pumps, Residential Heat Pump thumbnail-1
Air to Water Electric R410a Low Temperature Air Source Heat Pumps, Residential Heat Pump photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Taiyu
Place of Origin:
China
Model Number:
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Taiyu
Place of Origin China
Delivery Time:10-15 days after receiving TT payment
Certification:CE / EN14511

Air to Water Electric R410a Low Temperature Air Source Heat Pumps, Residential Heat Pump


Energy saving air source heat pump AW10/L-DPNHS, with internal Wilo water pump and 3KW electric heater, 443 stainless steel cabinet, all in one design make the installation easy to be finished. TUV approved efficiency, world famous parts assured high quality level.

*Hitachi EVI compressor

*SWEP or GEA plate type heat exchanger

*Schneider A/C contactor

*Saginomiya low pressure switch

*Carle pressure sensor

*Honeywell R410a refrigeration

Taiyu low temperature air source heat pump AW13/L-DPNHS, adopt Hitachi EVI compressor, can be used at -20 degree outside temperature. The injection new technology make it possible that, even at -15 degree, the efficiency of the heat pump can reach 1.9. This is the ideal product to be used at the rather cold winter area.

AW13/L – DPNHS

LOW TEMPERATURE AIR TO WATER HEAT PUMP

AW10/L-DPNHS

Heat output/Power consumption at 7/35℃

kW

11.40/2.70

Heat output/Power consumption at 7/45℃

kW

12.10/3.41

Heat output/Power consumption at 7/55℃

kW

12.18/4.19

Heat output/Power consumption at 2/35℃

kW

10.30/2.70

Heat output/Power consumption at 2/45℃

kW

11.63/3.37

Heat output/Power consumption at -7/35℃

kW

9.78/3.04

Heat output/Power consumption at -7/45℃

kW

9.66/3.58

Heat output/Power consumption at -10/35℃

kW

8.75/3.04

Heat output/Power consumption at -10/45℃

kW

8.57/3.62

Heat output/Power consumption at -15/35℃

kW

7.82/3.09

Heat output/Power consumption at -15/45℃

kW

7.73/3.62

Starting current

A

53

Power

380-415V/3PH/50Hz

Compressor

HITACHI scroll

Condenser

Brazed plate heat exchanger

Nominal flow heating medium

l/s

0.55

Internal pressure drop at nominal flow

kPa

16

Air flow

m3/h

5000

Nominal output fan

W

300

Max outgoing heating medium temperature

℃

55

Dimensions(HxWxD)

mm

1075X1105X505

Pipe connector

DN32

Weight

kg

185

The above data is t
