Double-Head CNC Router

Name: Double-Head CNC Router
Brand: TZJD
SKU: 147884248
Availability: InStock

US$ 4480 - 4480 MOQ: 1 Piece

Key Specifications

Brand Name:

TZJD

Place of Origin:

China

Model Number:

TZJD-1224D

Tengzhou Jianda CNC Machine Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name TZJD

Place of Origin China

Model Number TZJD-1224D

Product Features:

1. Cast heavy-thickness square tube welding structure, solid without distortion.

2. Germany Ballscrew system for Z axis, high-efficiency wrking. Rack gear for X Y axis, high-speed with best rigidity.

3. Taiwan HIWIN Square orbits. High-efficiency & Long-time life.

4. Water-cooling spindle, can be working for a long term.

5. Brolen-point memory, ensures the continuity of work when inciddent happens.

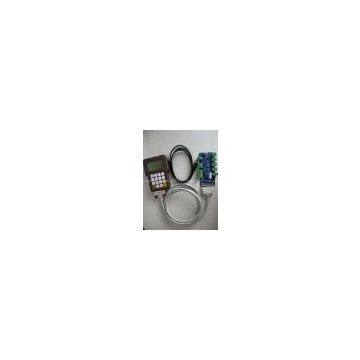

6. DSP Controller system, conveniently to operate.

7. Water-cooling Spindle & Air-cooling Spindle, fasting-speed & working-efficiency.

8. U flash interface.

9. Software compatibility: Types/Artcam/astmate/Wentai & these CAD/CAM designing software.

10. Water-cooling system, mainly improve the tools working-life. Low noise & lowest maintenance.

11. Double motors for Y axis, confirm the working under stable.

12. Tool sensor system, save extra time, improve working-efficiency.

13. Special dustproof device, confirm the working environment cleanly.

Specification Parameter

Description	Parameter
TZJD-1224D
Working Area (XYZmm)	*1200mm2400mm100mm*
Max Engraving Speed	8000mm/min
Frame	Cast Square tube welding
XYZ travelling positioning accuracy	±0.03/300mm
XYZ repositioning accuracy	±0.02mm
Spindle power(KW)	*1.5 KW/2.2KW/3KW/4.5KW 2**
Max. Power Consumption(Without spindle)	1.2KW
Spindle Speed	6000-24000rpm
Resolution	0.005mm
Repeatability	0.01mm
Voltage	AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)
Drive motor	Stepper(option:Servo motor)
Working table	T-Slot with PVC board
Working Dictate	G Code.u00.mmg*.plt
Operating system	Nc-studio/DSP optional
Different diameters blade	ф3.175, ф6mm, ф12.7mm, ф2,ф1, etc.
Software environment	Windows98/2000/xp
Interface	USB
Flash memory	128M(U Disk)
Software Compatability	Type3,,Ucancam,Artcam Software)
Running Environemt	Temperature: 0℃~45℃
Relative humidity: 30%~75%
Machine available(option)	Dust collector system, spindle cover, Japan Panasonic Servo motor, vacuum absorption table & vacuum pump system, Auto-oiling system, Tool-sensor,
