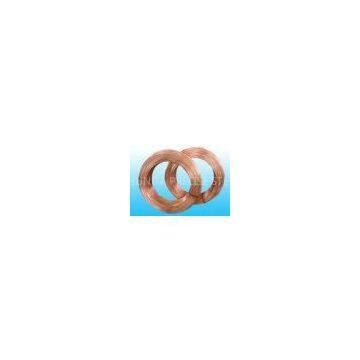

Welded Refrigeration Copper Tube / Bundy Pipe For Compressor 6*0.5mm

Delivery Time:According to quantity about order
Certification:ISO9001,ISO14001
Welded Refrigeration Copper Tube / Bundy Pipe For Compressor 6*0.5mm

1.Materials: low carbon steel strip

2.Main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3.outer diameter:6mm

4.wall thickness: 0.5mm

5. standard: GB/T 24187-2009

6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management  System

7.surface treatment: copper coated

8. Features:soft  and easy to bend

9.tensile strength: more than 290 Mpa

10.yield strength:more than 180 Mpa

11.elongation:more than 25%

12. place of origin: changzhou city, jiangsu province, China.

13. port of loading:shanghai, China;

14. package:plastic cloth with coils, wooden boxes, iron pallets etc

15. delivery:as contract

16. supply ability:30000 ton per year

17. brand:WUSHUN

Applications:

Copper coated steel tube mainly used in refrigerator, freezer ,condenser, evaporator and compressor etc,it is made  by material  low carbon steel strip

Specifications:

specification	dimensional tolerance	Mechanical properties
Diameter tolerance	Wall thickness tolerance	tensile strength	yield strength	elongation
copper coating tube 6*0.5mm	±0.08	±0.08	≥290Mpa	≥180Mpa	≥25%

Competitive Advantage:

Bright copper coating, good welding performance.including copper coated outside and two sides ,size is complete and  best price with best quality .According country standard.
