9000 - 17000 Viscosity Light Yellow Transparent Liquid Casting Epoxy Resin With CW - 6225
Description:

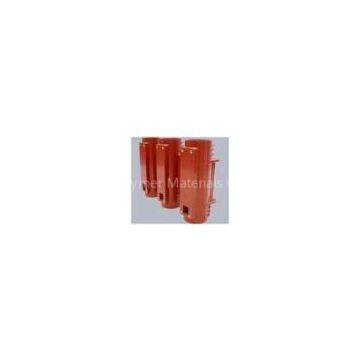

CW-6225 APG type casting resin system is suitable for production of electrically insulators for medium and high voltage, such as post-type insulators, supports, switcher, bushing, current and voltage transformers (dry type) by means of moulding or APG process. It has very high resistance to mechanical, electrical stresses and thermal shock. It has excellent long-term behaviour in relation to breakdown stress.
Specifications:
Product Technical Specification:
1.CW-6225-5 A Epoxy Resins
|
Viscosity(25°C) |
mPa.s |
9,000-17,000 |
|
Epoxy Equivalent |
g/eq |
190-210 |
|
Density |
g/cm3 |
1.1-1.2 |
|
Appearance |
- |
Light Yellow Transparent Liquid |
|
Storage Time |
Month |
6 |
2.CW-6225-5 B Hardener
|
Viscosity(25°C) |
mPa.S |
200-800 |
|
Density |
g/cm3 |
1.15-1.25 |
|
Appearance |
- |
Light Yellow Transparent Thick Liquid |
|
Storage Time |
Month |
6 |
3. Silica Filler
|
Appearance |
- |
White Powder |
|
Grit |
Um |
400 |
The Using of Technology:
1.Blending Ratio
|
Epoxy Resin Group |
CW-6225-5 A |
100g |
225g |
|
Silica Filler |
125g |
||
|
Acid Anhydride Hardener Group |
CW-6225-5 B |
80g |
225g |
|
Silica Filler |
145g |
2. Operation of Technology
Pre-heat the Resin CW-6225-5 A and Hardener CW-6225-5 B to 60°C, blending separately with Silica Filler which is intensive drying and has pre-heated to 60°C in a vacuum environment, than according the weight ratio 1:1 to blend with epoxy resin and acid anhydride hardener at 80°C in vacuum environment for 10 minutes, after that to inject moulding.
3. Curing Technology
80°C/5Hours+100°C/3Hours; 130°C Cure for 10-16Hours.
