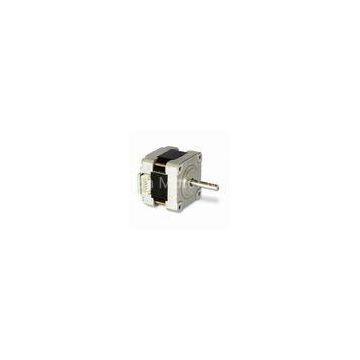

3.6 Nema 17 High Torque Hybrid Stepper Motor

Changzhou Smart Automation Motor Manufacturing Co.,Ltd
3.6 Nema 17 High Torque Hybrid Stepper Motor thumbnail-1
3.6 Nema 17 High Torque Hybrid Stepper Motor photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
China
Model Number:
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Smart Automation
Place of Origin China
Delivery Time:2~4 weeks
Certification:CE, RoHs

3.6° Nema 17 High Torque Hybrid Stepper Motor

Technique parameter

Item

Specification

Step Angle Accuracy

±5%(full step,no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80℃Max.(rated current,2 phase on)

Ambient Temperature

-10℃-+50℃

Insulation Resistance

100MΩMin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06Max.(450 g-load)

Shaft Axial Play

0.08Max.(450 g-load)

Technique Specification

Model No.

Rated Voltage

Current
/Phase

Resistance
/Phase

Inductance
/Phase

Holding
Tprque

#Of Leads

Rotor Inertia

Weight

Length

Single Shaft

Double Shaft

V

A

Ω

mH

Oz-in

g-cm

g-cm2

Kg

mm

SM42HT34-0954DA

SM42HT34-0954DB

9.31

0.095

98

200

7.2

530

4

20

0.20

34

SM42HT38-0954DA

SM42HT38-0954DB

9.98

0.095

105

330

9.7

700

4

23

0.23

38

Dimensions

Wiring Diagram

Pull out torque curve
MODEL: SM42HT34-0954D      CURRENT:0.095A      VOLTAGE:24VDC      FULL STEP    A

MODEL: SM42HT38-0954D       CURRENT:0.095A      VOLTAGE:24VDC      FULL STEP     B
