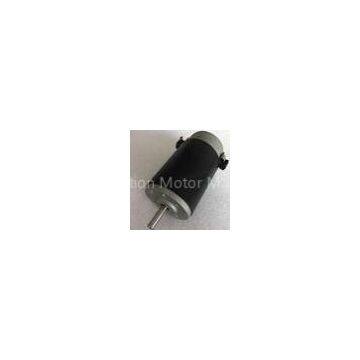

54ZYT-14206 SERIES 2 Pole Brushed DC Electric Motor 2800rpm, 75w
Brush Dc Motor
Motor technical parameter
Ball bearing
Hard ferrite magnet, 2- pole
Protection class IP 50
Insulation class: B
CE and ROHS certified
54ZYT-14206
|
Part/Model Number |
|||||
|
Specification |
Units |
14206 12.0V |
14206 24.0V |
14206 38.2V |
14206 48V |
|
Rated voltage |
VDC |
12.0 |
24.0 |
38.2 |
48.0 |
|
Continuous rated speed |
rpm |
2830 |
2770 |
2810 |
2790 |
|
Continuous rated torque |
mNm |
261 |
261 |
261 |
261 |
|
Continuous output power |
W |
76 |
75 |
76 |
75 |
|
Continuous current |
A |
9.31 |
4.41 |
2.80 |
2.20 |
|
Peak current |
A |
55 |
29 |
18 |
14 |
|
No load speed |
rpm |
3230 |
3150 |
3180 |
3150 |
|
No load current |
A |
0.56 |
0.26 |
0.17 |
0.13 |
|
Rotor inertia |
Kgcm2 |
3.67E-5 |
3.67E-5 |
3.67E-5 |
3.67E-5 |
|
Motor length |
Mm |
126 |
126 |
126 |
126 |
|
Weight of motor |
g |
1287 |
1287 |
1287 |
1287 |
