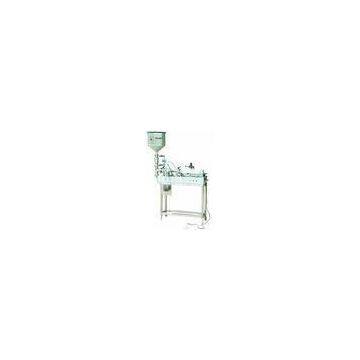

1000ml Three-way Piston Semi-automatic Filling Machine, Bottle Liquid Filler With Blocker
Description:
1. Adopts special three-way filling control valve
2.Substitute equipment of manual operation
3.No need to change any component
Technical performance
Adopts special three-way filling control valve, through the cylinder repeated movement to realize filling. It is the ideal substitute equipment of manual working.
Applications:
Applicable industries: Food, pharmaceuticals, daily chemical, pesticide and other industries.
Specifications:
|
Filling head |
1 head |
|
Volume |
40ml-1000ml |
|
Filling error |
≤±1% |
|
Filling speed |
≤600 bottles/hour(100ml water for test) |
|
Air source requirements |
Stable 0.55Mpa-0.65Mpa air |
|
Power supply |
220V/380V and others |
|
Total power |
0.1KW |
|
Weight |
30KG |
|
Overall Dimension |
1000×500×1200(L×W×H)mm |
Competitive Advantage:
Performance advantages
1. Control panel---- Simple interface, pedal control switch
2. Function improvement----Feeding nozzle is equipped with blocker to prevent dropping and leaking
3. Electrical elements----Adopting international famous brand to ensure the remarkable quality, stability and high precision.
4. Machine elements----The parts contacted with the material use the 316 high-quality stainless steel and non-poisonous, anti-corrosive PTEF hose. Other main machine parts use the 304 high-class stainless steel.
5. Maintenance condition----Fully accords to the GMP requirements, easy to disassemble and clean.
6. Changing specification----No need to change any components, easy to realize changing the bottle types by simple adjust.
