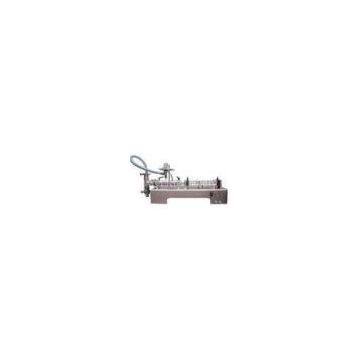

316L SS Single Head Horizontal Self-suction Filling Machines For Liquid / Ointment

316L SS Single Head Horizontal Self-suction Filling Machine For Liquid/Ointment

Technical Parameter:

Model       filling volume     Air consumption       Net weight             Dimensions(mm)

LH-1-15     5-150ml           23L/min                     11kg              L92xW28xH40

LH-1-25      10-250ml         30L/min                    25kg              L102xW30xH40

LH-1-50      10-250ml         44L/min                    28kg              L108xW32xH41

LH-1-100     60-1000ml        87L/min                  36kg              L128xW36xH41

LH-1-250     250-2500ml      160L/min               60kg              L130xW60xH51

LH-1-500     500-5000ml      300L/min              75kg              L130xW60xH51

Description:

The horizontal self-suction liquid filling machine is suitable for filling products of various viscosity such as water injection and ointment etc. It is applied in such industries as daily chemical industry, pharmacy, food and pesticide etc. The semi-automatic piston type filling machine(full-pneumatic) is a new generation product developed on the basis of the original electric combined machines. It adopts pneumatic components to replace the electric control circuit. Therefore, it is especially suitable for use in damp conditions or conditions with explosion-proof requirements. The parts of our LM series products that contact materials are all made of imported 316L stainless steel and are machined through CNC machine tools with the surface roughness lower than 0.8.

The full-pneumatic filling machine can be classified into elaborate type (T type) product and ordinary type (P type) product. The elaborate type adopts Germany FESTO pneumatic components. The imported components of excellent quality has ensured its absolute leading position among other same machines in the country. The ordinary type selects pneumatic components from Taiwan or Korea. The good performance-price ratio enables more customers to experience the outstanding quality of LM series machines

Advantage:

One year warranty since the date of delivery, If any wearing part be broken within the warranty and not caused by improperly operation, the Seller would offer the new parts for free in the warranty perieod . and the whole machine is the maintanance of life.

We are experienced in the cosmetic making machines with professional engineers. As we all know that different products have different requirements, we can recommend you the suitable machine and model according to your specification , if you are interested in the full automatic straight line type pistone filling machine or other cosmetics machineries, welcome to contact us for further information
