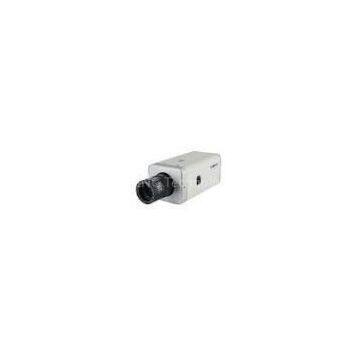

600TVL Extra High Resolution HD CCTV Cameras SC-HD01
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HAOMING
Place of Origin:
China
Model Number:
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Multi - Channel Monitor via Cellphone hd Cctv Camera FS-603A-M106 With Free DDNS SystemNegotiableMOQ: 1 Piece -
CCTV Camera High-end HD IR Long Distance CEE CCTV Camera CEE-C686NegotiableMOQ: 1 Piece
-
Baby Monitor 720P PT Mpeg4 Plug and Play IP Camera Video Phone, 10-15 MetersNegotiableMOQ: 1 Piece
-
Megapixel CIF Remotely HD CCTV Box Camera With High Image QualityNegotiableMOQ: 1 Piece
-
HD Dome IR Color Security CMOS CCTV Camera Security System, Indoor Surveillance CamerasNegotiableMOQ: 1 Piece
Brand Name
HAOMING
Place of Origin
China
Delivery Time:5-15 days
Certification:CE,FCC,ROHS
Certification:CE,FCC,ROHS
600TVL Extra High Resolution HD CCTV Cameras SC-HD01
Specifications
| Model | SC-HD01 | |
| Signal System | PAL/NTSC | |
| Scanning System | 2:1 Interlace | |
| Sync. System | Internal | |
| Scanning Frequency (H) | 15.734 kHz | 15.625 kHz |
| Scanning Frequency (V) | 59.94 kHz | 50 Hz |
| Image Sensor | 1/3 Inch High Sensitivity CCD | |
| Total Pixels | 811(H) x 508(V) 410K | 795(H) x 596(V) 470K |
| Total / Effective Pixels | 768(H) x 494(V) 380K | 752(H) x 582(V) 440K |
| Horizontal Resolution | 600 TV Lines (BW 650TVL) | |
| Lens Mount | CS Mount | |
| Video Output Level | 1.0V p-p(75Ω, Composite) | |
| S/N Ratio More than | 50dB (AGC Off) | |
| Day&Night Type | ICR (AGC Type) | |
| Min. Illumination | 0.05 Lux (Color), 0.005 Lux (B/W) | |
| Digital Noise Reduction | Low, Middle, High, Off | |
| White Balance | AUTO | |
| AGC | On/Off | |
| SBLC | Off, Low, Middle, High | |
| OSD | English, Chinese | |
| Mirror Function | Horizontal | |
| Privacy Zone | On/Off (4 Programmable Zone) | |
| Motion Detection | On/Off (4 Programmable Zone) | |
| Shutter Speed | 1/50~1/120, 000sec. |
1/60~1/120, 000 Sec. |
| Supplied Voltage | DC9V~15V (Recommendation DC12V±0.5V) | |
| Power Consumption | Max. 2.2W / 150mA | |
| Dimensions (WxHxD) | 64(W) x 57.6(H) x 124.66(D) mm | |
| Weight Approx. | 335g |
Features:
• 1/3 inch High Sensitivity CCD
• Delivering a superior image quality of 600TVL in color and 650TVL in black/white
• Excellent Low Light Sensitivity of 0.05Lux/F1.2
• Motion detection, 0~15 ranged and ajust the sensitivity in MDT Mode
• SBLC, Automatically compensates the darker areas surrounding the object to provide naturally sharp picture
• DNR, Built-in noise reduction technology efficently reduces the revideo noise and trailing effect to provide pure clear picture
• Privacy Zone funcation, high sensitivity ture D&N
• OSD Menu Control by Push Button
