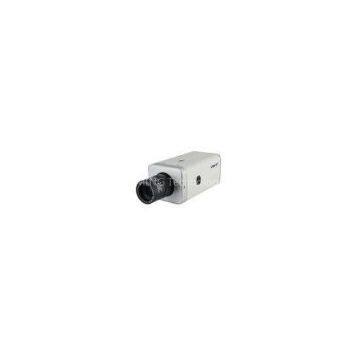

High definition White Balance outdoor 12V DC HD CCTV cameras SW-600
SW-600 Series are high definition box cameras, adopted PIXIM latest \"Seawolf\" solution, WDR range up to 120dB, 690 HTVL-E, have key-press OSD and newest stylish design.
Features:
1. PIXIM 1/3 Seawolf Solution；
2. 690HTVL-E Resolution；
3. 120dB Ultra WDR range ；
4. OSD Menu；
5. 3D-DNR;
6. AC 24V / 12V DC power design;
Specification:
| Model No. | SW-600-A | SW-600-B | |
| Sensor | Sensor | 1/3-inch DPS Sensor | |
| Menu Operation | Video Format | PAL/NTSC | |
| Resolution | 690 HTVL Effective* | ||
| Mini. Illumination | 0.1 lux min illumination (f/1.2, 50 IRE, 30 fps, CMY) | ||
| S/N Ratio | up to 50dB max (Y signal, AGC off) | ||
| Ess Modes | 1x~32 x | ||
| AGC | Normal, low, high | ||
| WDR | 120 db(max) | ||
| BLC | ON/OFF | ||
| Iris Control | Electronic iris/Auto iris lens (DC drive) | ||
| Extended Slow Shutter | 2x / 4x / 8x / 16x / 32x | ||
| Noise Reduction | 3D Motion Adaptive | ||
| Digital Zoom | 8x | ||
| White Balance | Mode: Automatic Tracking White Balance (ATW) | ||
| Automatic: (Auto White Balance) 2200~10000K° | |||
| Low Light Mode | Low speed shutter, AGC, Sense up B/W Low Speed Shutter .Image | ||
| Day/Night | OFF, External Control, Auto; ON | ||
| Sync Mode | Internal synchronous | ||
| Power | Voltage | DC12V/AC24V | 12V DC |
| Current | ≤150mA | ||
| Vide output | 1.0Vp-p/75 Ω Composite | ||
| Operating Temp. | -10℃～50℃ | ||
| Storage Temp. | -20℃～60℃ | ||
| Dimension | 127*60*50mm | ||
| Weight | 450g |
Technical characteristics
True WDR under varies testing standards
It is important to pay attention to features of WDR performance. That is to say, a camera without good WDR function will have problems in brightness, gray scale response, saturation, color area identification, inaccurate color rendition,smearing,contrast and definition. Below is the comparison of PIXIM WDR and CCD
WDR:
690HTVL-E high resolution
In the opinion of Frost and Sullivan, the proposed HTVL Effective specification is a much more relevant and accurate indication of the actual, useable resolution of CCTV cameras. In this age of digital image capture, digital recording, and display, HTVL-E provides users of security video with a more accurate benchmark to compare resolution among
different video camera technologies.The standard is simple to measure on any CCTV camera using any
type of image sensor, whether progressive scan or interlaced, thus Frost&Sullivan encourages its broad use within the video security industry.
