Bare Copper Leaky Feeder Cable, 75 Ohm Underground Leaky Feeder Cable For Wireless System

Name: Bare Copper Leaky Feeder Cable, 75 Ohm Underground Leaky Feeder Cable For Wireless System
Brand: Libo
SKU: 147855698
Availability: InStock

Bare Copper Leaky Feeder Cable, 75 Ohm Underground Leaky Feeder Cable For Wireless System thumbnail-1

Bare Copper Leaky Feeder Cable, 75 Ohm Underground Leaky Feeder Cable For Wireless System photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Libo

Place of Origin:

China

Model Number:

Coal mine leaky feeder cable

Contact Supplier Request Quote Chat Now

Shaoxing Libo Electric Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Libo

Place of Origin China

Model Number Coal mine leaky feeder cable

Delivery Time:5 days
Certification:CE, ISO9000, ISO14001,RoSH, MSHA

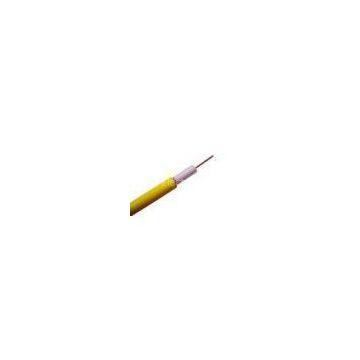

Bare Copper Leaky Feeder Cable, 75 Ohm Underground Leaky Feeder Cable For Wireless System

MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.

The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. The standard length is 350m or 500m with a yellow outer jacket.

As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available.

Applications:

Mines underground communication system metro stations tunnels ships In-building wireless systems. perimeter detection

Specification:

Inner conductor	2.31mm bare copper
Dielectric	9.50mm
Outer conductor	16x0.6 bare copper wire
Outer jacket	15.0mm0.2mm
Frequency	5 to 500MHZ
impedance	75 ohms
Attenuation @160 MHZ	4.2dB/100m
DC resistance inner conductor	＜4.5 ohm/km
DC resistance outer conductor	＜4.1 ohm/km
capacitance	54 pF/m
Insulation resistance	＞10.4m ohm/km
MIN. bend radius	150mm
Operating temperature	-40 to +70 centigrade

Competitive Advantage:

Libo cable was established in 1994, it covers over 340,000 square meters on our operating area. Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000. Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services. Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.
