1/2”NPT Sanitary Weld - In Bimetal 9”Industrial Thermometer Thermowell, 1-1/4” UNEF Swivel
Descrition:
Thermowell For Thermometer
Applications:
Thermowells are recommended for thermometers in process systems where pressure, velocity, or viscous, abrasive, and corrosive materials are present individually or in combination. A properly selected thermowell will protect the thermometers from damage resulting from the process variables. Additionally, a thermowell enables removal of the thermometers for replacement, repair, or testing without affecting the process system.
Specifications:
|
Model No. |
Application |
Process connection (male thread) |
Instrument connection (female thread) |
Material |
Bore (mm) |
|
SHTW-01 |
Bimetal Thermometer thermowell |
1/2”,3/4”,1” NPT,BSP,BSPT |
1/8”,1/4”,3/8”,1/2” NPT,BSP,BSPT |
304,316,316L Stainless steel, Brass,Monel,etc |
6.6, 8.0, 10.0 |
|
SHTW-02 |
9”Industrial Thermometer thermowell |
1/2”,3/4”,1” NPT,BSP,BSPT |
1-1/4” UNEF swivel |
304,316,316L Stainless steel, Brass, etc |
11.9 |
|

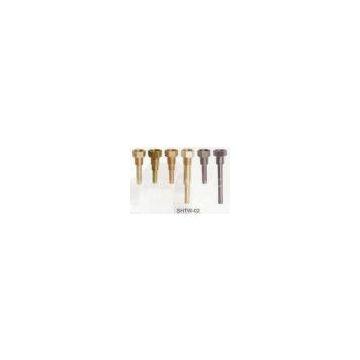

SHTW-03 |
Industrial Thermometer thermowell |
1/2”,3/4”,1” NPT,BSP,BSPT |
3/8”,1/2”,3/4”,BSP M20×1.5,M27× 2,etc |
304,316,316L Stainless steel, Brass,CuNi10Fe,etc |
8.0, 10.5 |
|
SHTW-04 |
Flanged thermowell |
1/2”,3/4”,1” ,1.5”,2”,3”,4”,6”DN15, 20,25,30,40,50,80 |
1/8”,1/4”,3/8”,1/2” NPT,BSP,BSPT |
304,316,316L Stainless steel, Brass,Monel,etc |
6.6, 8.0, 10.0 |
|
SHTW-05 |
Screw-in & Weld-in thermowell |
1/2”,3/4”,1” NPT(Screw-in |
1/8”,1/4”,3/8”,1/2” NPT,BSP,BSPT |
304,316,316L Stainless steel, Brass, etc |
6.6, 8.0, 10.0 |
|
SHTW-06 |
Sanitary thermowell |
1.5”or2”Tri-clamp |
1/2”NPT |
304,316,316L Stainless steel, etc |
6.6, 8.0, 10.0 |
