Product Details
| Brand Name | S.H.M | Place of Origin | China | |
| Model Number | SHP-01 |
Product Description
Certification:ISO9001:2008

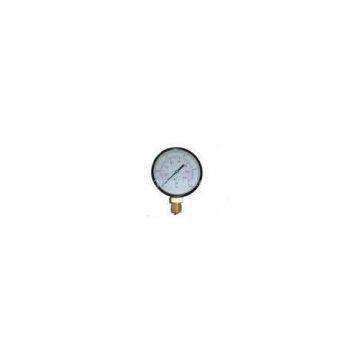

3\" 4\" EN 837-1 Black Steel Bezel General Instruments Pressure Gauge For Pneumatic Systems
Descrition:
General Pressure Gauge
Model No. SHP-01
Applications
* Hydraulic and pneumatic systems
* Pumps, compressors, water systems, regulators
* Suitable for fluid medium which does not clog connection port or corrode copper alloy
Features:
* Design EN 837-1
* 1.5\"(40mm), 2\"(50mm), 2.5\"(63mm), 3\"(80mm), 4\"(100mm) white aluminium dials
* Case material: Black plastic, painted steel or 304 stainless steel
* Window: Acrylic or glass
* Snap-fit, black steel bezel or stainless steel bezel
* Pointer: Black aluminium or black plastic
* Copper alloy bourdon tube and socket
Accuracy class
* 1.5\", 2\" & 2.5\": ± 2.5% (± 1.6% available)
* 3\": ± 1.6%
* 4\" & 6”: ± 1.0%
|
Model No. |
Dial |
Form |
Flange |
Case&Bezel |
|
SHP-01 |
1.5”,2”, 3”,4”, 6”,8”, 10”,etc. |
Back connection |
Front flang |
Plastic Black steel, Steel piated, Stainless steel |
|
Bottom connection |
Back Flange |
|||
|
Bourdon tube |
Range |
Connection |
Accuracy |
|
|
Cu-alloy |
Normal:0…0.6bar to 0…1000bar Vacuum:-76cmHg…0 Compound:-76cmHg..0…35bar Scale:bar,pai, Kg/cm2,KPa, MPa,etc |
1/8”,1/4”,3/8”,1/2” NPT,BSP,BSPT,etc. Brass |
±1.0%, ±1.6%, ±2.5% |
|
|
Movement |
||||
|
Brass |
