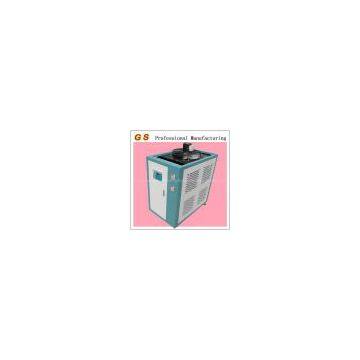

Help CenterCDW-3HP Air-cooled Water Refrigerating Machine/water Cooling Machine
Related Products
-
CDW-12HP Air-coold Water Cooling MachineNegotiableMOQ: 1 Set -
CDW-15HP Water Chilling MachineNegotiableMOQ: 1 Set
-
CDW-1HP Air Cooled Water Chiller MachineNegotiableMOQ: 1 Piece
-
CDW-2HP Air-cooled Water Refrigerating Machine/water Cooling MachineNegotiableMOQ: 1 Piece
-
CDW-2HP Air-cooled Water Refrigerating Machine/water Cooling MachineNegotiableMOQ: 1 Piece
We are an expert manufacturer of various cooling machines: air cooling machine, injection mold cooling machine, bottle blow cooling machine, laser cooling machine, open type cooling machine, screw type cooling machine, etc.
I. Application
The air cooling-water machine is widely used in many industries, including chemical, paper making industry, electronics, pharmacy, food processing industry, aluminum profiles, aluminum alloys, tempering glass, coated glass industry, laser technology, laser technology, jewelry processing, leather processing, cultivation industry, etc.
II. Characteristics
1. The machines uses brand compressor imported from Europe, American and Japan; can guarantee reliable running, high efficiency, low noise, power saving and long using life;
2. Microcomputer intelligent temperature controller, high precision digital display, the water temperature control accuracy can reach ±1℃. Temperature range is 3-50℃, can set at any temperature within this range;
3. Open type stainless steel thick incubator with built-in automatic water adding and automatic temperature control;
4. Water chilling unit condenser is casing pipe type, uses inner grooved copper tube, reasonable design assures high heat exchange efficiency;
5. Air cooling unit radiator is composed of tubes; using mechanical tube technology and heat exchanger production line, to guarantee high efficiency;
6. Electro-static plastic sprayed outer shell, Europeanized design, elegant outlook; the outer panel is of easy dismantlement, to guarantee convenient usage and maintenance.
III. Main technical parameters
|
Model |
CDW-3HP |
|
Voltage |
AC3N-380V |
|
Frequency |
50HZ |
|
Refrigerating capacity |
7500W |
|
Compressor power |
2.43KW |
|
CDW-CH |
|
|
Max. Flow |
21.6L/min |
|
Chilled water outlet |
1(1'') |
|
Water tank capacity |
45L |
|
Water pump motor |
0.5 HP |
|
Net weight |
165kg |
|
Safety protection |
Compressor over-current protection, flow alarm, over temperature alarm |
|
Refrigerating medium |
R22,R410 |
|
Flow controller |
|
|
Outer dimension (mm) |
900x528x800 |
