Certification:ISO9000,CE

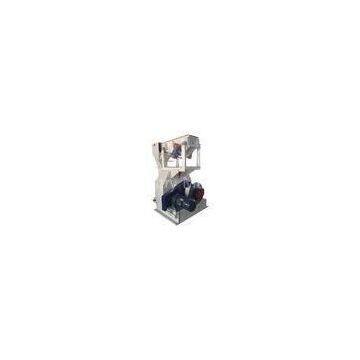

BX466 0.4 - 0.7 mm Flakes Thickness Knife-Ring Flaker For Producing Particleboard ISO9000
Applications:
Double drum wheel flaker is specially designed for using wood chips, milled veneer as the raw materials, shaving the materials into a certainty thickness of flake which be used to produce particleboard.
Specifications:
|
Technical data/Model |
BX466 |
|
Dia.of knife ring mm |
600 |
|
Quality of knives piece |
21 |
|
Knife length mm |
225 |
|
Rotation of knife-ring r.p.m |
50 |
|
Rotation of impeller rpm |
1960 |
|
Flakes thickness mm |
0.4-0.7 |
|
Main motor power kw |
75 |
|
Productivity kg/h |
700-900 |
|
Weight kg |
3500 |
|
Dimension mm |
2800×2265×2110 |
This equipment consists of vibration feeder , magnetic sorting device, separator of heavy objects, knife ring, impeller and machine base .
The main motor of impeller drives impeller by V-belt with a high speed. And the direction of rotation should to comply with arrowhead of base. Face to the machine door , the impeller should be running in anticlockwise direction . The knife ring is driven by reducing motor through chains and chains wheel in low velocity .the direction of rotation is different from impeller .
