- Changzhou Jinmu Forestry Machinery CO.,Ltd
-
Jinhua, Zhejiang, China
- Main products: Wood Chipper Machine
Home > Products > Wood Drum Chipper > 590 / 836 rpm, 37 m / min Feed Speed Wood Drum Chipper For Particle Board Plant BX216

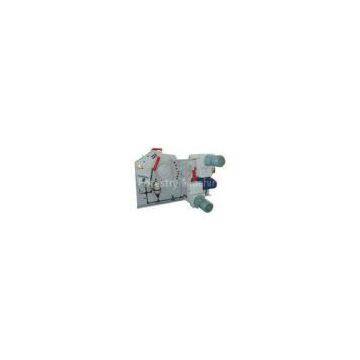

590 / 836 rpm, 37 m / min Feed Speed Wood Drum Chipper For Particle Board Plant BX216
- T/T L/C D/P D/A
- 7 days
You May Like
-
BX216 30mm / 22mm Chip Length, 10 m3/h Capacity Wood Drum Chipper For Paper Plant
-
180 * 500mm Feed Opening Wood Drum Chipper For Particle Board Plant BX216
-
Professional 800mm Rotor Diameter Wood Drum Chipper For Fiber-Board Plant BX218D
-
BX213 Wood Drum Chipper 120 * 300 mm Feed Opening, 300 mm Rotor Diameter ISO9000, CE
-
BX213 Wood Drum Chipper 120 * 300 mm Feed Opening, 730 rpm Rotor Speed, 26 mm Chip Length
-
38 m/min Feed Speed, 30 kw Wood Drum Chipper For Paper Plant, Fiber-Board Plant BX213
Product Details
| Brand Name | Xu Brand | Place of Origin | China | |
| Model Number | BX216 |
Product Description
Certification:ISO9000,CE
590 / 836 rpm, 37 m / min Feed Speed Wood Drum Chipper For Particle Board Plant BX216
Applications:
The drum chipper is the special equipment for producing perfect chips,it is used in paper plant,particle board plant,fiber-board plant,chip production and export bases
Drum chipper is the traditional product of our company,it is widely used by domestic and oversea customers because of its advantage performance,top quality,etc.The drum chipper is the special equipment for producing perfect chips,it is used in paper plant,particle board plant,fiber-board plant,chip production and export bases.By which,logs and small wood are cut into high quality with even length and uniform chip thickness,it is also suitable for the chipping of branches and twigs,planks,etc.
The chip length is different in accordance with the requirement of paper plant,particle board and fiber-board industries,so in order to meet this need,our company improve different kind of drum chippers recently,and the new type machine has more advantage.All the features show that it is an ideal equipment for chip production which can be exported all over the world.
Specifications:
|
Specifications/Model |
BX216 |
|
|
Rotor diameter mm |
650 |
|
|
Number of rotor knives (pieces) |
2 |
|
|
Feed opening mm |
180×500 |
|
|
Rotor speed rpm |
590 |
836 |
|
Feed speed m/min |
37 |
|
|
Stock processed max diameter mm |
120 |
|
|
Chip length mm |
30 |
22 |
|
Capacity m³/h m3/h |
10 |
|
|
Main drive motor power kw |
55 |
|
|
Feed roller motor power kw |
3×2 |
|
|
Pump motor power kw |
||
|
Machine net weight kg |
4070 |
|
|
Overall dimensions(L×W×H) |
4348×1730×1258 |
