Help CenterPalisade Fence
Related Products

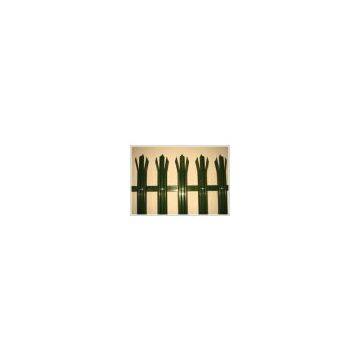

Steel Palisade Fences are available in a choice of head styles, in either type:'w' or 'd' pale section. D pale is the traditional profile while W pale offers added security to the fencing. Steel palisade fence is manufactured with hot dipped galvanized steel bar or pvc coated steel bar welded together.
The forbidding appearance and inherent strength of the pales provide an effective deterrent to would be intruders. Palisade fencing is offered in a range of heights up to 3.6 metres, and is self-adjusting to slopes of up to 1 in 3.
Package:We can supply palisade assembled in panels, or bundled for site assembly along with either bolts or rivets.
Finishing:Palisade fence is available in a range of finishes, galvanised in, or galvanised and colour coated in various colours to blend with the environment.
Construction of Steel Palisade:
A standard panel is constructed from hot and cold rolled steel sections supplied for assembly on site. Panels consist of 17 vertical pales manufactured in "D" or "W" profile with a choice of tops. The pales are fixed to rolled steel angle horizontals which are supported by 102 x 44 joist posts.
|
Fence Height (mm) |
Pale Profile Sections 'D' (mm) |
Pale Profile Sections 'W' (mm) |
Horizontal Rails Angle Section (mm) |
IPA Section(mm) |
Length (mm) |
Support feet per bay |
|
1800 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2400 |
2 |
|
2000 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2625 |
2 |
|
2100 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2725 |
2 |
|
2400 |
3 |
2.5 |
45x45x6 |
98 x 55 |
3125 |
2 |
|
3000 |
3 |
2.5 |
50x50x6 |
98 x 55 |
3925 |
2 |
