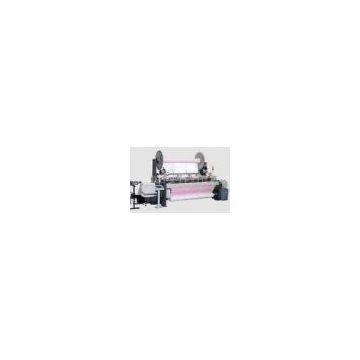

8 Colour Electronic Weft Selector Towel Loom Equipment, Rapier Looms Machines
Main Specification:
|
Model |
HYRL-788A |
|
Mian reed width |
200, 220, 240, 260, 290, 360cm Width reduction: up to 80 cm. |
|
Spun yarns |
500tex (1.2Ne)~5tex (120Ne |
|
Filament yarns |
10dte(9td )~1650dte(1500Td) |
|
Designing speed |
550rpm |
|
Pratical speed |
350—400rpm |
|
Weft insertion rates |
up to 1350m/min |
|
Colour selection |
8-colour electronic weft selector |
|
Weft feeder |
FDP electronic accumulator |
|
Driving control |
rated three-phase 7.5kw motor, Electro-magnetic brake-cloth unit |
|
Direct drive |
fast reactive permanent super motor with low power consumption |
|
Shedding motion |
High-speed electronic dobby with max. 20 shafts |
|
Looping motion |
Servo motor control, dynamic loop control, loop is formed by sley movement. Automatic looping and switching from 3~7 picks |
|
Loop height |
0~24mm (at will) |
|
Beat-up motion |
Conjugated cams in two sides with cam followers |
|
Filling insertion |
Spatial crank shaft linkage construction with guide hook |
|
Let-off motion |
Continuous, electronically controlling let-off system |
|
Warp beam diameter |
ground 800mm; pile 1000mm |
|
Cloth take-up |
Continuous, electronically controlling take-up system |
|
Diameter of cloth roll |
standard 600mm(on loom) 1200mm(outside loom) |
|
Pick density |
5~150 icks/cm |
|
Selvage formation |
Normal or high speed electronic controlled |
|
Selvage cutter |
Mechanical / Electronic |
|
Temple |
LH& RH individual temple. |
|
Lubrication |
Pressurized oil circulation system with continuous filtration & bath oil. |
|
Stop motion |
Warp yarn: separate electric warp stop motions |
|
Weft yarn |
high-sensitivity piezoelectricity detector Automatic stop motion for leno and false selvage yarn |
|
Stop display |
4-colour multi-function indication lamps |
|
Automatic |
Orientation stop / slow motion for pick finding /warp tension adjustment etc |
|
Controlling |
functional CPU control system, can control, scout, auto diagnose, information showing. |
|
Display |
big LCD showing bidirectional communication, button operation, instant adjustment/ parameter setting, programmer making |
HYRL-788 top grade terry rapier loom adopts electronic let-off and electronic take-up, servomotor-looping system, has most advanced electronic controlling capability, loop formation can be changed freely from 3~7 picks,
