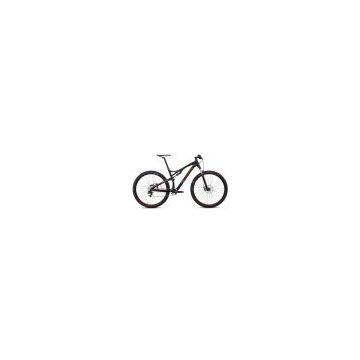

2013 Specialized Epic Expert Carbon EVO R 29 Mountain Bike

SPECIFICATION :

FRAME
FACT 10m carbon front triangle, 29" geometry, FACT IS construction, gussetless TT (S/M), carbon seatstays, M5 chainstays, tapered HT, carbon PF30 BB, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm travel
REAR SHOCK
FOX/Specialized remote Mini-Brain w/ AUTOSAG, inertia valve, Brain Fade adjust, 187x47mm
FORK
RockShox Sid 29 Brain, inertia valve damper, Solo air spring, alloy tapered crown/steerer, Brain Fade and rebound adj., QR, 100mm travel
HEADSET
1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, 6-degree rise, S: 75mm, M: 90mm, L: 105mm, XL: 105mm
HANDLEBARS
S-Works XC Carbon flat bar, uni-directional carbon, 680mm wide, 8-degree backsweep, 31.8mm
GRIPS
Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness
FRONT BRAKE
Magura MT6, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, S/M: 160mm L/XL:180mm rotor
REAR BRAKE
Magura MT6, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, 160mm rotor
BRAKE LEVERS
Magura MT6, carbon master cylinder, alloy lever blade, hollow lever pivot, reach adj.
FRONT DERAILLEUR
Custom Specialized EVO XC DMD chain guide for 1x10
REAR DERAILLEUR
SRAM X0 Type 2, 10-speed, mid cage
SHIFT LEVERS
SRAM X9, 10-speed, trigger, w/MatchMaker clamp
CASSETTE
SRAM PG-1050, 10-speed, 11-36
CHAIN
KMC X10, nickel plate, reusable Missing Link
CRANKSET
Custom SRAM carbon S-2200, 34T single ring, PF30 spindle, removable spider, S: 170mm, Others: 175mm
CHAINRINGS
34T
BOTTOM BRACKET
SRAM PF30, OS press-in bearing, sealed cartridge
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
RIMS
Roval Control 29, alloy disc, 24mm wide, 32h
FRONT HUB
Roval Control 29, OS28 end caps, QR, 32h
REAR HUB
Roval Control 29 142+, DT Swiss alloy cassette body, 12mm thru-axle, 32h
SPOKES
DT Swiss Super Comp, 2.0/1.65/1.8 stainless
FRONT TIRE
S-Works Fast Trak, 2Bliss Ready, 120 TPI, aramid bead, 29x2.0"
REAR TIRE
Specialized Fast Trak Control, 2Bliss Ready, 60 TPI, aramid bead, 29x2.0"
INNER TUBES
Ultralight presta
SADDLE
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized 2014 butted alloy, single bolt setback, 30.9mm, 400mm
SEAT BINDER
Specialized 7050 hard anodized alloy, 36.9mm, single bolt
